V-12

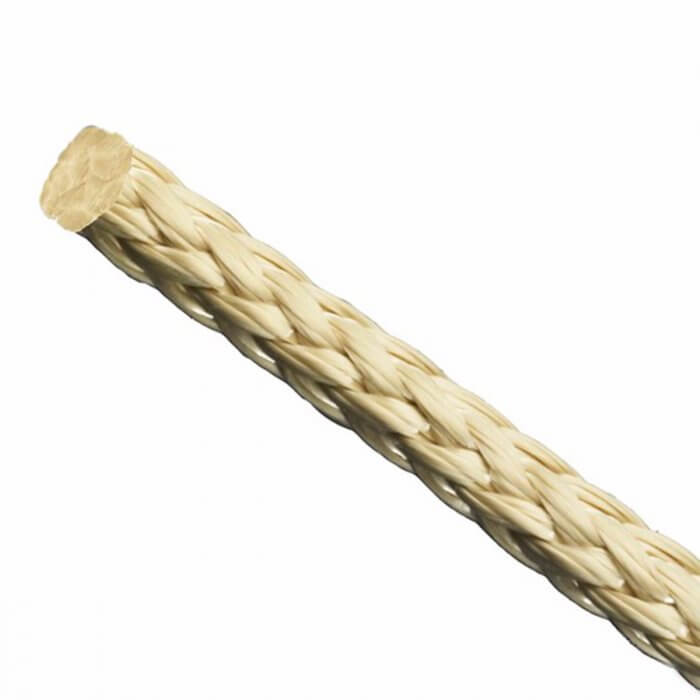

V-12 is a 12-strand single braid of 100% Vectran®. It provides highest strength, lowest stretch and creep of any other 12-strand.
Color Images
Tan
-
Tan
V-12 is treated with a proprietary urethane coating for improved abrasion resistance.
This 12-strand single braid provides highest strength, lowest stretch and creep of any other 12-strand.
Features:
- Good fatigue resistance
- Easily spliced
- No creep
- High temperature resistance
| ID | Diameter [mm] | Diameter [inch] | Circumference | Weight [g/m] | Weight [lbs/100'] | Min. breaking strength [lbs] | Avg. Breaking strength [lbs] |
|---|---|---|---|---|---|---|---|
| 3 | 1/8 | 6,80 | 0,46 | 1 600 | 2 100 | ||
| 4 | 5/32 | 11,90 | 0,80 | 2 800 | 3 300 | ||
| 5 | 3/16 | 17,90 | 1,20 | 3 500 | 4 950 | ||
| 6 | 1/4 | 3/4 | 22,30 | 1,50 | 5 800 | 7 200 | |
| 8 | 5/16 | 1,00 | 49,10 | 3,30 | 9 500 | 10 900 | |
| 10 | 3/8 | 1 1/8 | 69,90 | 4,70 | 14 600 | 17 000 | |
| 11 | 14-Feb | 1 1/4 | 98,20 | 6,60 | 23 500 | 26 000 | |
| 12 | 1/2 | 1 1/2 | 111,60 | 7,50 | 26 000 | 29 200 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
