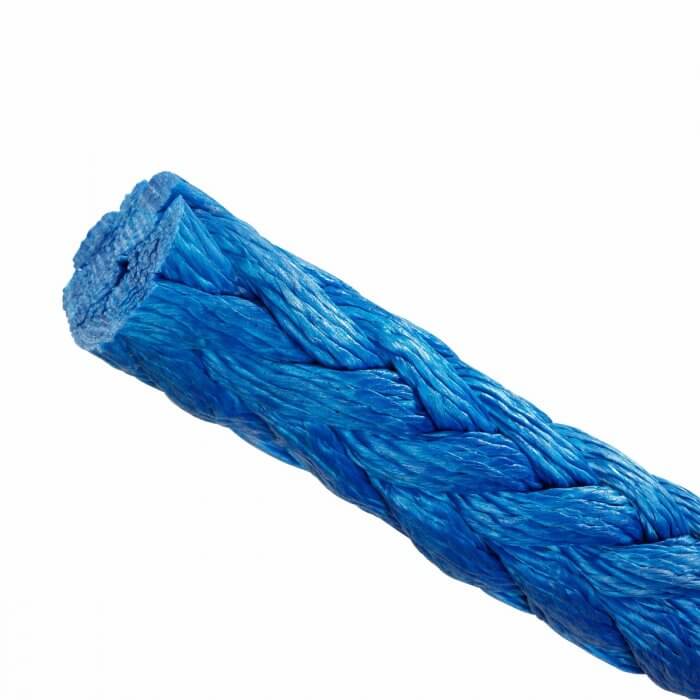

Holdfast

Lightweight, high grip, high-strength and floating line.

Lightweight, high-strength, floating line that grips on H-bitts and capstans much better than 100% HMPE. Excellent for mooring lines and tug tow lines.

Color Images
  • Blue

Just as the sailors of yore, we too are inspired by the strong grip of the holdfast which has a grip similar to that of our aquatic friends: mussels and barnacles. That’s why we chose Holdfast as the name for a line that is the perfect match of strength and grip.

This ropes utilizes HMPE and Nylon fibers to deliver a lightweight, high-strength, floating line that will grip on H-bitts and capstans much better than traditional 100% HMPE lines. Holdfast is coated with TEUFELBERGER’s proprietary abrasion resistant coating that is specially formulated to yield higher strength better grip and more durable and water-resistant lines. Holdfast is available in a variety of colors.

 Our Holdfast can be used for following applications:

  • ƒBarge Line
  • ƒH-bitt Working Line
  • ƒTug Pendants
  • ƒConventional Tug Winch Line
  • ƒWinch Line
  • ƒCapstan Winch Line
  • ƒDry Dock Lines
  • ƒGeneral Purpose Working Line
ID Diameter
[mm]
Diameter
[inch]
Circumference Weight
[g/m]
Weight
[lbs/100']
Min. breaking strength
[lbs]
Avg. Breaking strength
[lbs]
18 3/4 2 1/4 219,60 14,76 35 010 38 900
22 7/8 2 3/4 268,50 18,05 44 730 49 700
24 1,00 3 321,70 21,62 55 800 6 200
28 1 1/8 3 1/2 460,20 30,93 69 750 77 500
30 1 1/4 3 3/4 503,50 33,84 79 020 87 800
32 1 5/16 4 573,40 38,54 92 250 102 500
34 1 3/8 4 1/8 646,20 43,43 97 650 108 500
36 1 1/2 4 1/2 697,90 46,91 110 070 122 300
40 1 5/8 5 875,40 58,84 131 400 146 000
44 1 3/4 5 1/2 991,60 66,65 152 550 169 500
48 2 6 1 177,60 79,15 176 850 196 500
56 2 1/4 7 1 685,20 113,27 247 950 275 500
60 2 1/2 7 1/2 1 984,60 133,39 278 100 309 000
64 2 5/8 8 2 394,30 160,93 325 800 362 000
72 3 9 3 136,90 210,84 417 600 464 000
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
