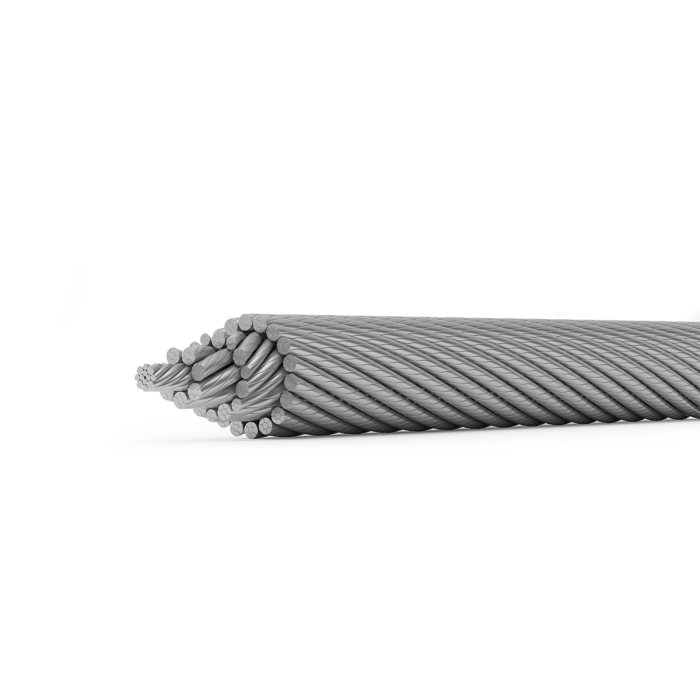

FLEXPACK
La migliore fune del mondo in classe 35x7
Flexpack è la fune Teufelberger-Redaelli antigiro per eccellenza, vincitrice dei Guinness World Record.
Specifiche
— Avvolgimento crociato o parallelo, destro o sinistro
— 12-13 mm: 27(W)xK7, RCN 23-2
— 14-40 mm: 34(W)xK7, RCN 23-2
— 41-46 mm: 39(W)xK7-WSC, RCN 23-3
Antigiro, altissima resistenza per elevati carichi assiali e pressioni trasversali stabile e al contempo flessibile: queste sue caratteristiche specifiche rendono Flexpack una scelta vincente per le alte prestazioni. Il suo particolare design, basato su trefoli compattati modulari, consente prestazioni eccellenti nelle condizioni più severe. I diametri grandi dei fili che caratterizzano questa fune
Abrasione ridotta grazie all’incrementata superficie di contatto della fune che rende straordinaria questa fune.
| Costruzione | Diametro | Peso | Forza di rottura minima | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1770 N/mm² | 1960 N/mm² | 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | |
| 34(W)xK7 | 14 | 1,00 | 0,67 | 178 | 40 016 | 195 | 43 838 | 208 | 46 760 | |
| 34(W)xK7 | 15 | 1,14 | 0,77 | 205 | 46 086 | 224 | 50 357 | 239 | 53 729 | |
| 34(W)xK7 | 15,88 | 5/8 | 1,28 | 0,86 | 230 | 51 706 | 251 | 56 427 | 268 | 60 249 |
| 34(W)xK7 | 16 | 1,30 | 0,87 | 233 | 52 380 | 255 | 57 326 | 272 | 61 148 | |
| 34(W)xK7 | 17 | 1,47 | 0,99 | 263 | 59 125 | 288 | 64 745 | 307 | 69 016 | |
| 34(W)xK7 | 18 | 1,65 | 1,11 | 295 | 66 319 | 323 | 72 613 | 344 | 77 334 | |
| 34(W)xK7 | 19 | 3/4 | 1,84 | 1,24 | 329 | 73 962 | 360 | 80 931 | 383 | 86 102 |
| 34(W)xK7 | 20 | 2,03 | 1,36 | 364 | 81 830 | 398 | 89 474 | 415 | 93 296 | |
| 34(W)xK7 | 21 | 2,24 | 1,51 | 402 | 90 373 | 439 | 98 691 | 457 | 102 738 | |
| 34(W)xK7 | 22 | 2,46 | 1,65 | 441 | 99 141 | 482 | 108 358 | 502 | 112 854 | |
| 34(W)xK7 | 22,23 | 7/8 | 2,51 | 1,69 | 450 | 101 164 | 492 | 110 606 | 512 | 115 102 |
| 34(W)xK7 | 23 | 2,69 | 1,81 | 482 | 108 358 | 527 | 118 474 | 548 | 123 195 | |
| 34(W)xK7 | 24 | 2,93 | 1,97 | 524 | 117 800 | 553 | 124 319 | 574 | 129 040 | |
| 34(W)xK7 | 25 | 3,18 | 2,14 | 569 | 127 916 | 600 | 134 885 | 622 | 139 831 | |
| 34(W)xK7 | 25,40 | 1,00 | 3,28 | 2,20 | 587 | 131 963 | 620 | 139 382 | 642 | 144 327 |
| 34(W)xK7 | 26 | 3,44 | 2,31 | 616 | 138 482 | 649 | 145 901 | 673 | 151 296 | |
| 34(W)xK7 | 28 | 3,99 | 2,68 | 714 | 160 514 | 753 | 169 281 | 781 | 175 576 | |
| 34(W)xK7 | 28,58 | 1 1/8 | 4,15 | 2,79 | 744 | 167 258 | 785 | 176 475 | 813 | 182 770 |
| 34(W)xK7 | 30 | 4,58 | 3,08 | 819 | 184 119 | 865 | 194 460 | 896 | 201 429 | |
| 34(W)xK7 | 31,75 | 1 1/4 | 5,13 | 3,45 | 918 | 206 375 | 968 | 217 615 | 1 004 | 225 708 |
| 34(W)xK7 | 32 | 5,21 | 3,50 | 932 | 209 522 | 984 | 221 212 | 1 020 | 229 305 | |
| 34(W)xK7 | 34 | 5,88 | 3,95 | 1 053 | 236 724 | 1 110 | 249 538 | 1 151 | 258 755 | |
| 34(W)xK7 | 35 | 1 3/8 | 6,23 | 4,19 | 1 115 | 250 662 | 1 177 | 264 600 | 1 220 | 274 267 |
| 34(W)xK7 | 36 | 6,59 | 4,43 | 1 180 | 265 275 | 1 245 | 279 887 | 1 291 | 290 228 | |
| 34(W)xK7 | 38 | 1 1/2 | 7,34 | 4,93 | 1 315 | 295 624 | 1 387 | 311 810 | 1 423 | 319 903 |
| 34(W)xK7 | 40 | 8,14 | 5,47 | 1 457 | 327 547 | 1 537 | 345 531 | 1 577 | 354 524 | |
| 39(W)xK7-WSC | 41,28 | 1 5/8 | 8,49 | 5,71 | 1 492 | 335 415 | 1 569 | 352 725 | on request | on request |
| 39(W)xK7-WSC | 42 | 8,79 | 5,91 | 1 545 | 347 330 | 1 624 | 365 090 | on request | on request | |
| 39(W)xK7-WSC | 44 | 9,65 | 6,48 | 1 696 | 381 276 | 1 782 | 400 610 | on request | on request | |
| 39(W)xK7-WSC | 44,45 | 1 3/4 | 9,84 | 6,61 | 1 730 | 388 919 | 1 819 | 408 927 | on request | on request |
| 39(W)xK7-WSC | 46 | 10,54 | 7,08 | 1 853 | 416 571 | 1 948 | 437 928 | on request | on request | |
| 39(W)xK7-WSC | 47,63 | 1 7/8 | 11,30 | 7,59 | 1 987 | 446 695 | 2 088 | 469 401 | on request | on request |
| 39(W)xK7-WSC | 48 | 11,48 | 7,71 | 2 018 | 453 664 | 2 121 | 476 820 | on request | on request | |
| 39(W)xK7-WSC | 50 | 12,46 | 8,37 | 2 189 | 492 107 | 2 301 | 517 285 | on request | on request | |
| 39(W)xK7-WSC | 50,80 | 2 | 12,86 | 8,64 | 2 260 | 508 068 | 2 376 | 534 146 | on request | on request |
| 39(W)xK7-WSC | 52 | 13,47 | 9,05 | 2 368 | 532 348 | 2 489 | 559 549 | on request | on request | |
| 39(W)xK7-WSC | 54 | 2 1/8 | 14,53 | 9,76 | 2 554 | 574 162 | 2 684 | 603 387 | on request | on request |
| 39(W)xK7-WSC | 56 | 15,62 | 10,50 | 2 747 | 617 550 | 2 887 | 649 023 | on request | on request | |
| 39(W)xK7-WSC | 57,15 | 2 1/4 | 16,27 | 10,93 | 2 860 | 642 954 | 3 007 | 676 000 | on request | on request |
| 39(W)xK7-WSC | 58 | 16,76 | 11,26 | 2 946 | 662 287 | 3 097 | 696 233 | on request | on request | |
| 39(W)xK7-WSC | 60 | 17,94 | 12,06 | 3 153 | 708 823 | 3 314 | 745 017 | on request | on request | |
| 39(W)xK7-WSC | 60,33 | 2 3/8 | 18,13 | 12,18 | 3 188 | 716 691 | 3 351 | 753 335 | on request | on request |
| 39(W)xK7-WSC | 62 | 19,15 | 12,87 | 3 367 | 756 932 | 3 539 | 795 599 | on request | on request | |
| 39(W)xK7-WSC | 63,50 | 2 1/2 | 20,09 | 13,50 | 3 531 | 793 800 | 3 712 | 834 491 | on request | on request |
| 39(W)xK7-WSC | 64 | 20,41 | 13,71 | 3 587 | 806 390 | 3 771 | 847 755 | on request | on request | |
| 39(W)xK7-WSC | 66 | 21,70 | 14,58 | 3 815 | 857 646 | 4 010 | 901 484 | on request | on request | |
| 39(W)xK7-WSC | 66,68 | 2 5/8 | 22,15 | 14,88 | 3 894 | 875 406 | 4 093 | 920 143 | on request | on request |
| 39(W)xK7-WSC | 68 | 23,04 | 15,48 | 4 050 | 910 476 | 4 257 | 957 012 | on request | on request | |
| 39(W)xK7-WSC | 70 | 2 3/4 | 24,41 | 16,40 | 4 291 | 964 655 | 4 511 | 1 014 113 | on request | on request |
| 39(W)xK7-WSC | 72 | 25,83 | 17,36 | 4 540 | 1 020 633 | 4 772 | 1 072 788 | on request | on request | |
| 39(W)xK7-WSC | 73 | 2 7/8 | 26,55 | 17,84 | 4 667 | 1 049 183 | 4 906 | 1 102 913 | on request | on request |
| 39(W)xK7-WSC | 74 | 27,28 | 18,33 | 4 796 | 1 078 184 | 5 041 | 1 133 262 | on request | on request | |
| 39(W)xK7-WSC | 76 | 28,78 | 19,34 | 5 059 | 1 137 308 | 5 317 | 1 195 309 | on request | on request | |
| 39(W)xK7-WSC | 76,20 | 3 | 28,93 | 19,44 | 5 085 | 1 143 153 | 5 345 | 1 201 604 | on request | on request |
Con riserva di errori di battitura e modifiche tecniche. I dati sono valori tipici senza garanzia. Per domande siamo sempre a vostra disposizione.
