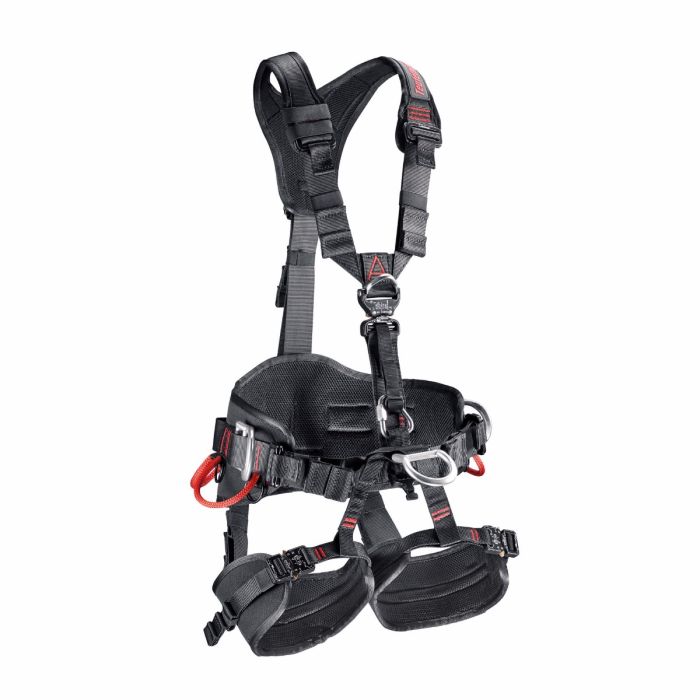

tripleA – Access All Areas
The TripleA is used for rope-assisted work on industrial facilities, facades, wind turbines, masts, and various other buildings and structures.
Specifications
Certifications: EN 358, EN 361, EN 813
Max. Nominal load: 140 kg
Tethering points:
Our TripleA is designed for professional users with high demands on comfort, freedom of movement, safety and versatility.
Thanks to its sophisticated design and extremely lightweight construction, the TripleA offers almost unlimited possibilities for use. True to the motto “Access All Areas”. The innovative design of the chest eyelet with integrated D-ring COBRA belt fastener leaves nothing to be desired!
Design:
- Shoulder pads made of 3D mesh material with soft edging - pleasantly soft in the neck area
- ANSI D-ring COBRA buckle chest loop - all in one! Belt buckle and fall arrest eyelet! Extremely robust and tested to the toughest requirements of the ANSI standard (18 kN)
- Chest clamp (not included): Optimum fastening option with screw link
- Seat belt eyelet made of forged aluminum D-ring angled and movable - large diameter to be able to attach several carabiners
- ANSI COBRA buckle 25 mm for attaching the TripleA-EasyAccess lanyard. Extremely robust and tested according to the toughest requirements of the ANSI standard (18 kN)
- Integrated seat board fastening made of polyester webbing - Optimum load transfer when using the seat board
- Sophisticated tripleA construction for perfect balance during seated activities
- COBRA buckle 25 mm in the leg loops
- Leg pads made of 3D mesh material with optimal padding - best wearing comfort (even without seat board) and air circulation
- Angled forged aluminum D-ring catching eyelet on the back
- 45 mm polyester webbing, impregnated - flexible and yet very robust
- Black-coated aluminum adjustment buckles - easy to adjust
- Attachment option for first aid kits at the back of the lap belt
- Wide hip pad made of 3D mesh material with optimal padding - best wearing comfort (even without seat board) and air circulation
- Retaining eyelets made of forged aluminum D-rings, angled and foldable - when in use they stand out from the hip, when not in use they can be folded backwards
- Material loops made of reinforced core sheath rope for transporting additional material and equipment, max. load capacity per loop 25 kg
- Metal tool retaining eyelets on the lap belt for attaching tool bags, belt pouches or individual equipment, max. load capacity per ring 10 kg
- Stitching on the webbing on the lap belt to be able to attach material carabiners such as Caritool
- 25 mm polyester webbing, impregnated - very light and robust
This video does not replace proper instructions and is for illustrative purposes only.
Installation of tripleA accessories:
This video does not replace proper instructions and is for illustrative purposes only.
Art. Nr. | Bezeichnung | Bein- / Hüftumfang / Körpergröße | Weight |
---|---|---|---|
733 0326 | tripleA Gr. 1 | 50 – 80 cm / 75 – 125 cm / bis 185 cm | 2100 g |
733 0327 | tripleA Gr. 2 | 50 – 95 cm / 75 – 130 cm / ab 185 cm | 2250 g |
