tREX

Rigging line

tREX is ideally suited for use as a rigging line, soft eye sling or loopie.

Specifications

Standard: Machinery Directive 2006/42/EC
Cover: polyester
Plait number: 12

This product is not CE marked per PPE Regulation – not allowed for PPE use in EU.

Made in
Color Images
  • Orange/Gray

    9,5 mm

  • Orange/Red

    11,1 mm

  • Orange/White

    12,7 mm

  • Orange/Yellow

    15,9 mm

  • Orange/Green

    19,1 mm

  • Orange/Blue

    22,2 mm

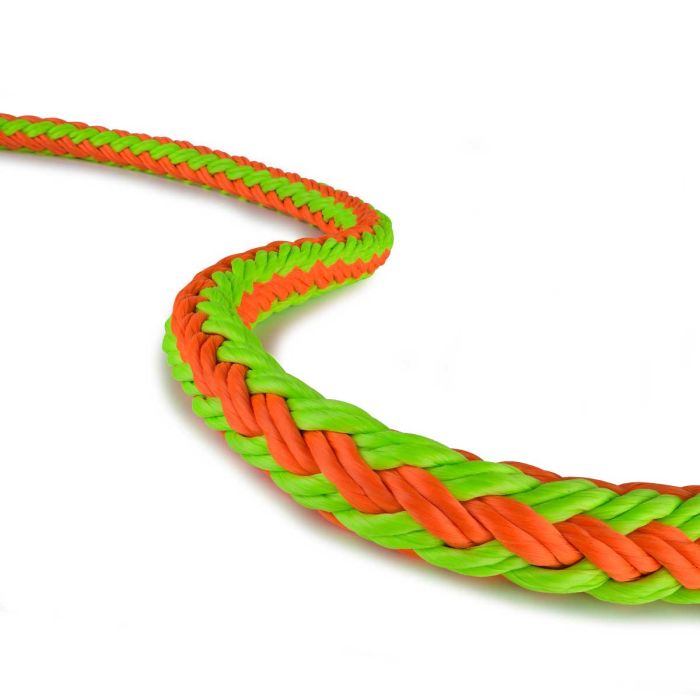

tREX is a low-stretch hollow braid rope consisting of 12 strands. Thus, it is specifically designed for use as a standard rigging line, soft eye sling, or loopie.

This hi-vis rigging line is easy to splice while maintaining a supple feel and excellent abrasion resistance. tREX’s distinguishing features include its color design: each hi-vis strand is solution-dyed to prevent loss of color throughout use. Furthermore, our tREX is wax coated, which keeps it from getting rough fast, prevents the 'snagging' typically encountered with such ropes and also increases the rope’s service life significantly. tREX comes in diameters from 9.5 mm to 22.2 mm as well as different colors.

Diameter
[mm]
Diameter
[inch]
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
Min. breaking strength, spliced
[daN]
Min. breaking strength, spliced
[lbs]
Min. breaking strength, with figur 8 knot
[daN]
Min. breaking strength, with figur 8 knot
[lbs]
Weight
[g/m]
Weight
[lbf/100]
9.50 3/8 2 600 5 840 2 300 5 170 1 300 2 920 69,9 4.70
11.10 7/16 3 400 7 640 3 000 6 740 1 700 3 820 98,2 6.60
12.70 1/2 4 400 9 890 3 900 8 765 2 200 4 945 129,4 8.70
15.90 5/8 6 600 14 835 5 900 13 260 3 300 7 415 203,8 13.70
19.10 3/4 9 100 20 455 8 100 18 205 4 500 10 115 267,8 18
22.20 7/8 12 800 28 770 11 500 25 850 6 400 14 385 347,7 23.30
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
