Sta-Set ®
Sta-Set from TEUFELBERGER is a durable high-grade double braided polyester rope that is ideal for rigging applications.
Specifications
Lengths: 50 m, 70 m, with or without eye, and 183 m in the box
Standard: Machinery Directive 2006/42/EC
Core: polyester
Cover: polyester
Plait number: 24
Color Images
Orange
14,3 mm; 22.2 mm
Blue
15.9 mm; 25.4 mm
Red
12.7 mm; 19.1 mm
-
Orange
14,3 mm; 22.2 mm
-
Blue
15.9 mm; 25.4 mm
-
Red
12.7 mm; 19.1 mm

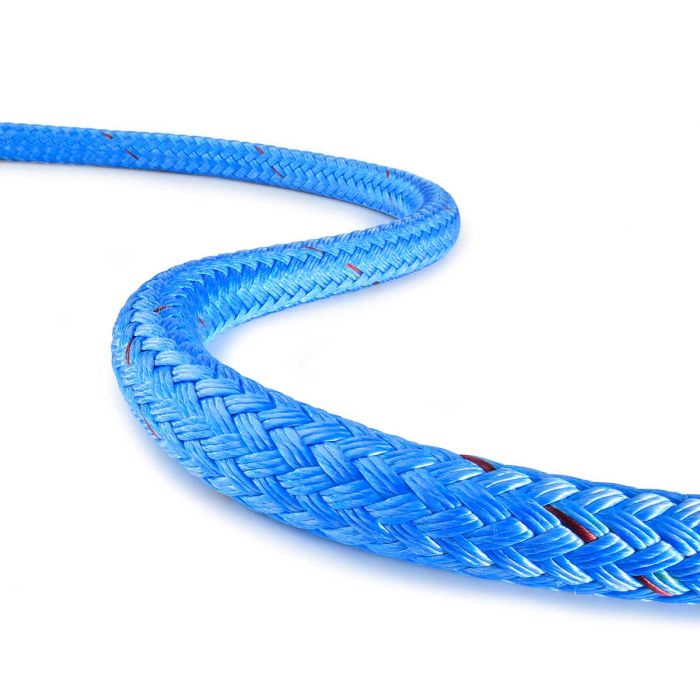

Our Sta-Set is a rigging line consisting of a premium quality and durable polyester double braid.
Its stronger cover featuring a high degree of twist in the yarns makes our Sta-Set a flexible and highly resistant rigging line. Its use is particularly recommended for cases where blocks are employed.
Our urethane coating imparts greater abrasion resistance to the Sta-Set.
Moreover, Sta-Set exhibits good knot holding ability and can be readily spliced into various slings.
Sta-Set is available in boxes, or cut to lengths, with or without spliced eye.
| Diameter [mm] | Diameter [inch] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] | Min. breaking strength, spliced [daN] | Min. breaking strength, spliced [lbf] | Min. breaking strength, with figur 8 knot [daN] | Min. breaking strength, with figur 8 knot [lbf] | Weight [g/m] | Weight [lbf/100] | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12.70 | ‘1/2 | 3 700 | 8 310 | 3 200 | 7 190 | 1 600 | 3 590 | 116 | 7.80 | |
| 14.30 | ´9/16 | 4 225 | 9 500 | 4 700 | 10 600 | 2 400 | 5 400 | 150.3 | 10.10 | |
| 15.90 | ‘5/8 | 6 500 | 14 610 | 5 500 | 12 360 | 2 900 | 6 510 | 177 | 11.90 | |
| 19.10 | ‘3/4 | 8 700 | 19 550 | 7 400 | 16 630 | 3 900 | 8 760 | 253 | 17 | |
| 22.20 | ´7/8 | 11 830 | 26 600 | 12 200 | 27 500 | 6 400 | 14 390 | 352.60 | 23.70 | |
| 25.40 | ´1 | 14 855 | 33 400 | 14 300 | 32 100 | 7 500 | 16 860 | 482 | 32.40 |
