Sta-Set
Allround ropes

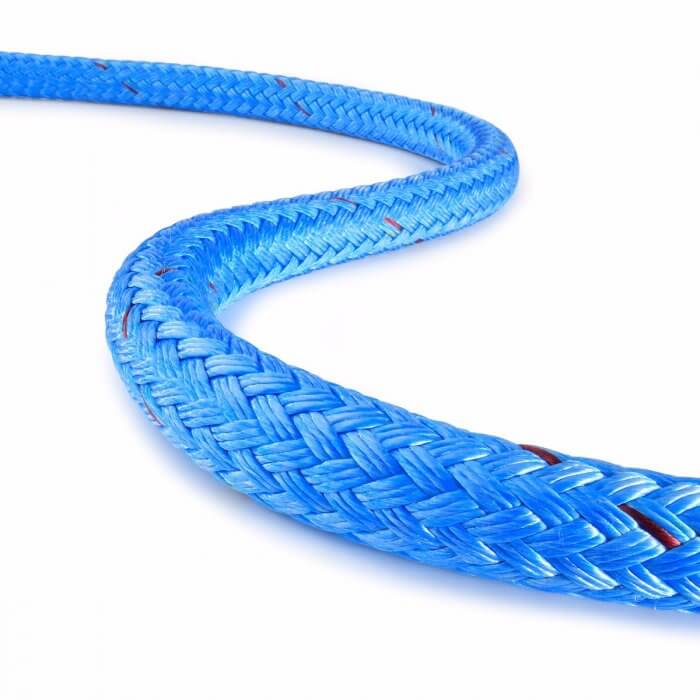

Sta-Set, an allround rope from TEUFELBERGER, is known for its low stretch and long service life.
Specifications
Core: polyester
Cover: polyester
Braid: 24
Made in
Color Images
Black
All Diameters
Blue Fleck
All Diameters
Green Fleck
All Diameters
Blue
All Diameters
Red Fleck
All Diameters
Green
All Diameters
White
All Diameters
Red
All Diameters
-
Black
All Diameters
-
Blue Fleck
All Diameters
-
Green Fleck
All Diameters
-
Blue
All Diameters
-
Red Fleck
All Diameters
-
Green
All Diameters
-
White
All Diameters
-
Red
All Diameters
Sta-Set, our industry leading polyester double braid, is a universally utilizable safety and rescue rope. Sta-Set is ideal for all applications requiring control lines, positioning, lifting, or lowering. This allround rope is available in different color variants and diameters.
Sta-Set features:
- long service life
- low stretch
- softness and flexibility
- spliceability
| Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] |
|---|---|---|---|---|---|
| 5 | 3/16 | 16.4 | 1.10 | 530 | 1 200 |
| 6 | 1/4 | 29.8 | 2 | 975 | 2 200 |
| 8 | 5/16 | 46.1 | 3.10 | 1 555 | 3 500 |
| 10 | 3/8 | 64.0 | 4.30 | 1 775 | 4 000 |
| 11 | 7/16 | 89.3 | 6 | 2 310 | 5 200 |
| 13 | 1/2 | 116.0 | 7.80 | 3 935 | 8 850 |
| 14 | 9/16 | 150.3 | 10.10 | 4 225 | 9 500 |
| 16 | 5/8 | 177.10 | 11.90 | 5 780 | 13 000 |
| 19 | 3/4 | 252.9 | 17 | 9 875 | 22 000 |
| 22 | 7/8 | 352.6 | 23.70 | 11 830 | 26 600 |
| 25 | 1.00 | 482.0 | 32.40 | 14 855 | 33 400 |
| 28 | 1 1/8 | 592.1 | 39.80 | 16 680 | 37 500 |
| 32 | 1 1/4 | 732.0 | 49.20 | 16 945 | 38 100 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
