SAN DIEGO CONVENTION CENTER
Roof Structure, 2017, - United States
Roof Structure, 2017, - United States
The San Diego Convention Center is located in the Marina district of downtown San Diego where it provides 57,200m2 of exhibit area, 72 meeting rooms and a capacity of 125,000 people. The architectural centrepiece of the Convention Center is the roof of Sails Pavilion that mirrors the nearby marina for which Teufelberger-Redaelli contributed to its construction.

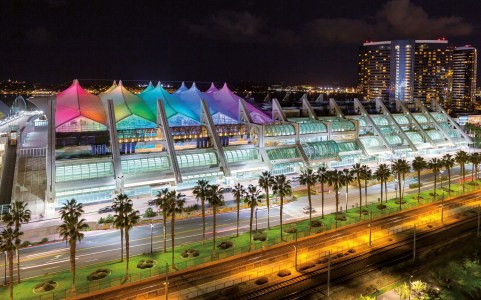

The Sails Pavilion is a 8,400m2 exhibit and special event area; it can accommodate a multitude of events from trade shows, food and beverage functions to new product introductions and concerts. The renovation of Sails Pavilion has included a complete replacement of the roof, that includes Teflon-coated fiberglass “sails” supported by steel cables. Thanks to 136 cable assemblies which make up the new complex cable net structure supplied by Teufelberger-Redaelli. This impressive roof structure is brought to life at night time with an incredible LED colored light display.
Key facts
|
Cables |
Type Ø |
Total |
|
Open Spiral Strand |
OSS16 |
12 |
|
Open Spiral Strand |
OSS 20 |
10 |
|
Open Spiral Strand |
OSS 22 |
8 |
|
Open Spiral Strand |
OSS 28 |
22 |
|
Open Spiral Strand |
OSS 32 |
20 |
|
Open Spiral Strand |
OSS 32 |
20 |
|
Open Spiral Strand |
OSS 32 |
4 |
|
Open Spiral Strand |
OSS 48 |
4 |
|
Full Locked Coil |
FLC 52 |
12 |
|
Full Locked Coil |
FLC 52 |
6 |
|
Full Locked Coil |
FLC 52 |
4 |
|
Full Locked Coil |
FLC 55 |
2 |
|
Full Locked Coil |
FLC060 |
4 |
|
Full Locked Coil |
FLC060 |
8 |
|
Sockets |
Type Ø |
Total |
|
Special Fork Socket |
ESCO - L7001 |
12 |
|
Special Bridge Type Socket |
ESCO L-9061-24 |
12 |
|
Special Fork Socket |
ESCO - L7002 |
28 |
|
Special Bridge Type Socket |
ESCO L-9062 |
8 |
|
Fix Fork Socket |
TTF028 |
44 |
|
Fix Fork Socket |
TTF032 |
40 |
|
Special Fork Socket |
ESCO - L7005 |
40 |
|
Special Fork Socket |
ESCO - L7006 |
4 |
|
Special Bridge Type Socket |
ESCO - L9066 |
4 |
|
Special Fork Socket |
ESCO L-7009 |
8 |
|
Fix Fork Socket |
TTF052 |
36 |
|
Special Fork Socket |
ESCO L-7011 |
8 |
|
Special Fork Socket |
ESCO L-7012 |
4 |
|
Fix Fork Socket |
TTF060 |
24 |
Key facts project
| Site: | San Diego |
| Project: | San Diego Convention Center |
| Client: | Birdair Inc. |
Scope of project
- Cable system supply and installation
Further Images
