KEN ROSEWALL ARENA
Roof Structure, 2019, - Australia
Roof Structure, 2019, - Australia

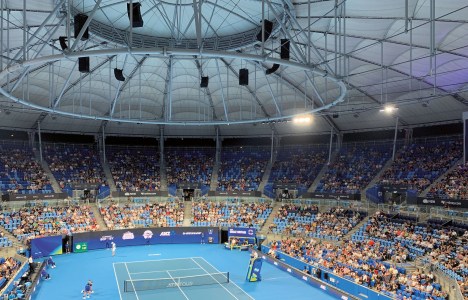

The Ken Rosewall Arena is a multi-purpose covered arena that was originally constructed for the Sydney 2000 Olympic games and hosts tennis, netball and other indoor courtbased sports as well as cultural events. This all-weather venue with 10,500-seat capacity was designed by Cox Architecture and Arup.
The 100m span suspended roof with 8,000m2 area is supported by a cable net composed of FLC 30mm, FLC 40mm and FLC 50mm cables with fixed and adjustable fork sockets TTF and TBF.
Key facts
|
Cables |
Type Ø |
Total |
|
Full Locked Coil |
FLC 050 |
24 |
|
Full Locked Coil |
FLC040 |
24 |
|
Full Locked Coil |
FLC030 |
48 |
|
Sockets |
Type Ø |
Total |
|
Adjustable Fork Socket |
TBF048 |
24 |
|
Adjustable Fork Socket |
TTF048 |
24 |
|
|
TTF036 |
24 |
|
|
TBF036 |
24 |
|
|
TTF028 |
48 |
|
Fixed Fork Socket |
TBF028 |
48 |
Key facts project
| Site: | Sidney |
| Project: | Ken Rosewall Arena |
| Client: | Fabritecture |
Scope of project
- Cable system supply
