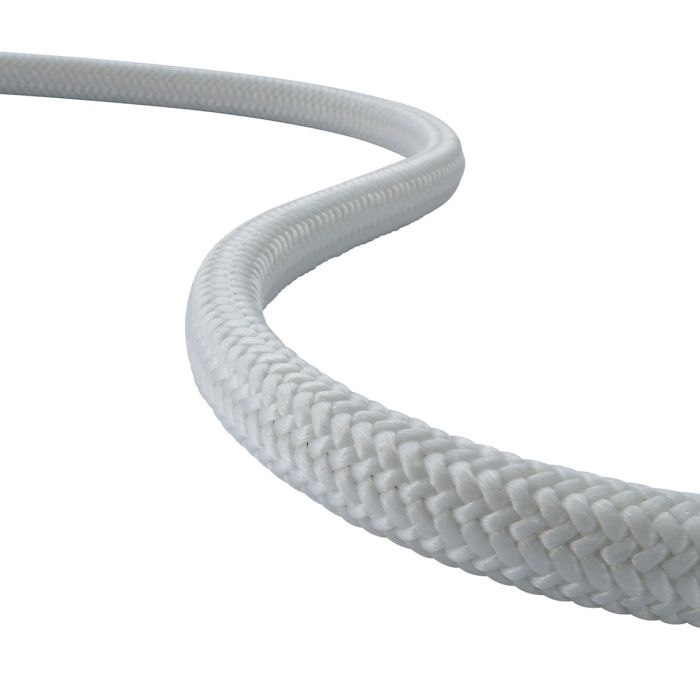

STRATOS® Winch Pro
STRATOS® Winch Pro, a fiber rope featuring a unique protective cover, is TEUFELBERGER's winch rope for professional full-time users.
Specifications
Diameter: 8-23 mm
Lengths: Variable, made as needed
Construction: Kernmantle rope
Core: UHMWPE
Cover: UHMWPE
The STRATOS® Winch Pro kernmantle rope made of UHMWPE is TEUFELBERGER's winch rope for professional use.
The tightly braided UHMWPE cover protects the load-bearing UHMWPE fibers from abrasion and the ingress of dirt and, as a result, increases the rope's lifetime by severalfold.
Dimensioned and used correctly, this long-established and proven winch rope will last much longer than a steel rope.
Types and areas of use:
- Hauling rope for add-on winches and skidding winches
| Rope diameter [mm] | Core diameter [mm] | Min. breaking strength, spliced [kN] | Weight [g/m] | |
|---|---|---|---|---|
| 8 | 6 | 48 | 44 | |
| 10.50 | 8 | 90 | 73 | |
| 12 | 10 | 120 | 94 | |
| 13 | 11 | 145 | 102 | |
| 15 | 12 | 180 | 150 | |
| 17 | 14 | 235 | 192 | |
| 20 | 16 | 300 | 259 | |
| 23 | 18 | 355 | 332 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
