High Performance Steel Adjustable Socket
The adjustable sockets made of high performance steel are including cast steel parts or/and machined steel components. They can be also classified as swaged or poured sockets. In the company product range the FLT, TBC and and MAC_R swaged sockets are designed to have some adjustment length while the adjustable poured sockets are TBF, BRC, CYT, CYN, CYW, CYB, CYR, CYM, CYV and CYA.
Our range of high performance steel cables can be either supplied using Full Locked Coil (FLC) ropes or Open Spiral Strands (OSS). Both solutions are available with poured spelter cone type sockets (resin or zinc filled) or with pressed swaged sockets depending on the cable diameter and the project requirements and specifications. Each socket is made using high strength steels and can be chosen from a wide range of socket shape options, the majority of which are available in either a fixed or length adjustable configuration to meet the design and architectural requirements.
In case of special architectural structural requirements, sockets can be customized in relation to degree of length adjustment, resistance, structural interface.
Cables are terminated to the sockets by means of three possible methods:
- Spelter socketing by polyester resin for structural use with minimum 100% efficiency to the strand minimum breaking force. In accordance with EN 13411-4.
- Spelter socketing by poured hot zinc or zinc alloy with minimum 100% efficiency to the strand minimum breaking force. In accordance with EN 13411-4.
- Swaged (pressed) socketing with minimum 90% efficiency to the strand minimum breaking force. In accordance with EN 13411-8.
Spelter socketing involves the following manufacturing operations:
- The wires at the strand end are opened to form a “brush”.
- The brush is ultrasonically cleaned.
- The brush is positioned inside the internal cone profile of the socket.
- Structural polyester resin or zinc / zinc alloy is poured into the socket wires to form a socket cone.
- 5. The solid cone that is created transfers the load between cable and socket.
There are no mechanical wedges, grips, serrations or connections used in the socketing process, meaning there is no mechanical damaging of the wires within the strands at this safety critical area. Whilst the structural efficiency of resin and zinc / zinc alloy socketing is the same, there are some differences to be considered in the selection of the preferred method:
- Resin is cold process and zinc / zinc alloy is a molten hot metal pour, meaning pouring resin is inherently safer than pouring zinc / zinc alloy.
- Resin is more efficient to produce because of the relative curing time compared to zinc / zinc alloy.
- Zinc / zinc alloy is poured at a temperature of approximately 450 °C, therefore sockets must be pre-heated before socketing operations begin.
- Where there is a requirement for painted sockets, pre-heating the sockets is not possible, therefore resin socketing is the only available choice.
- Resin is recommended for HDPE sheathed cables because of the high temperatures of the poured zinc / zinc alloy can melt and damage the polyethylene.
Socketing by swaging is performed by pressing the section of sockets with the cable termination inside. This method reduces the cable system’s resistance by 10% of strand minimum breaking force. All sockets connections are designed to have a breaking force higher than that of the respective strand.
Adjustable Fork Socket
MATERIAL: High strength steel casting G24 Mn6 (EN 10340), BT1 (BS 3100) or G18 NiMoCr3-6 (EN 10340) quenched and tempered
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION: • Ultrasonic Test (EN 12680-1)
• Magnetoscopic Test (EN 1369)
• Visual Inspection (EN 1370)
• Dimensional Control (ISO 8062-3)
• Radiographic Examination (EN 12681) upon request
Socket body & Pin
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION: • Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Coupler
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION: • Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Lock plates for socket pin
MATERIAL: S355J2 (EN 10025)
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)

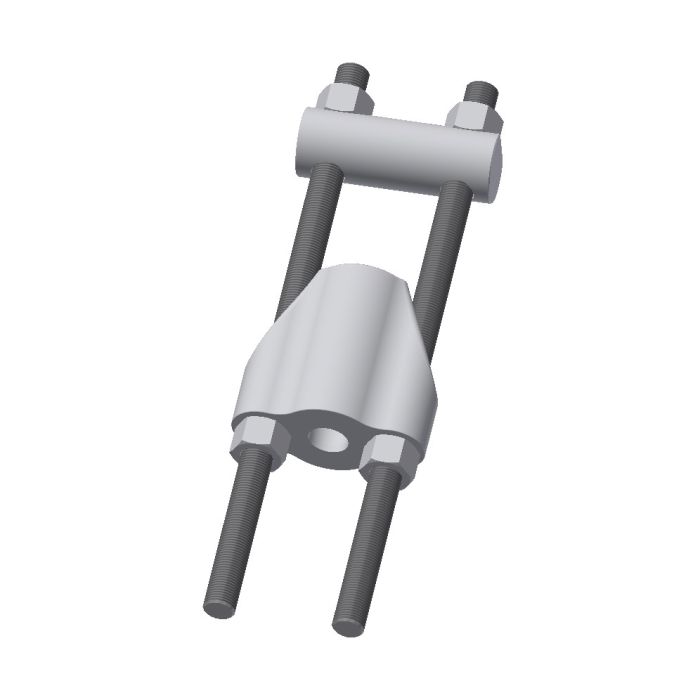

Bridge Socket BRC
MATERIAL: High strength steel casting G24 Mn6 (EN 10340), BT1 (BS 3100) or G18 NiMoCr3-6 (EN 10340) quenched and tempered
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 12680-1)
• Magnetoscopic Test (EN 1369)
• Visual Inspection (EN 1370)
• Dimensional Control (ISO 8062-3)
• Radiographic Examination (EN 12681) upon request
Pin:
MATERIAL: High strength alloy steel CrNiMo
(EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Threaded rods and nuts
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Cylindrical sockets type CYT
Cylindrical sockets type CYT & Nuts for CYT
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Cylindrical sockets type CYN
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Cylindrical sockets type CYW
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Cylindrical sockets type CYS
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Cylindrical sockets type CYB
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Bush for CYB
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Threaded rods and nuts for sockets type CYB
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
CYR
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Threaded rods and nuts for sockets type CYR
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Washers for CYR
MATERIAL: S355J2 (EN 10025)
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
CYM
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Threaded rods and nuts for sockets type CYM
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
CYV
MATERIAL: High strength alloy steel CrNiMo
(EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Threaded rods and nuts for sockets type CYV
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Washers for CYV
MATERIAL: S355J2 (EN 10025)
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
CYA
Cylindrical sockets type CYA
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched
and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
Coupler for sockets type CYA
MATERIAL: High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194)
CORROSION PROTECTION: Hot dip galvanising with bright threads/Geomet
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Magnetoscopic Test (EN 10228-1) only on nuts
• Visual Examination
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
FLT
MATERIAL: 42CrMo4 (EN ISO 683)
CORROSION PROTECTION: Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Visual and Dimensional Inspection
FLT S355J2
MATERIAL: S355J2 (EN 10025)
CORROSION PROTECTION: Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Visual and Dimensional Inspection
TBC
MATERIAL: 42CrMo4 (EN ISO 683)
CORROSION PROTECTION: Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Visual and Dimensional Inspection
Pin for TBC swaged socket
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXANINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
TBC S355J2
MATERIAL: S355J2 (EN 10025)
CORROSION PROTECTION: Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Visual and Dimensional Inspection
Pin for TBC swaged socket
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXANINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
MAC_R
MATERIAL: 42CrMo4 (EN ISO 683)
CORROSION PROTECTION: Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Visual and Dimensional Inspection
Pin for MAC-R swaged socket
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXANINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
MAC_R S355J2
MATERIAL: S355J2 (EN 10025)
CORROSION PROTECTION: Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461)
NDT EXAMINATION:
• Ultrasonic Test (EN 10308)
• Visual and Dimensional Inspection
Pin for MAC-R swaged socket
MATERIAL: High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered.
CORROSION PROTECTION: Hot dip galvanising with minimum 85 μm thickness (EN 1461)
NDT EXANINATION:
• Ultrasonic Test (EN 10308)
• Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads)
|
|
MATERIAL |
CORROSION PROTECTION |
NDT EXAMINATION |
|
Fix Fork Socket TTF Adjustable Fork Socket TBF Socket Body for Bridge Socket BRC |
High strength steel casting G24 Mn6 (EN 10340), BT1 (BS 3100) or G18 NiMoCr3-6 (EN 10340) quenched and tempered |
Hot dip galvanising with minimum 85 μm thickness (EN 1461) |
• Ultrasonic Test (EN 12680-1) • Magnetoscopic Test (EN 1369) • Visual Inspection (EN 1370) • Dimensional Control (ISO 8062-3) • Radiographic Examination (EN 12681) upon request |
|
Socket body for TBF Cylindrical sockets type CYF, CYS, CYT, CYN, CYW, CYB, CYR, CYV, CYM, CYC and CYA Pin for TTF socket, TBF socket Pin for BRC socket Pin for MAC, MAC-R, TBC, MCC swaged socket Bush for CYB, CYR Nuts for CYT, CYN, CYW |
High strength alloy steel CrNiMo (EN ISO 683), rolled or forged, quenched and tempered. |
Hot dip galvanising with minimum 85 μm thickness (EN 1461) |
• Ultrasonic Test (EN 10308) • Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads) |
|
Threaded rods and nuts for sockets type CYB, CYR, CYV, CYM and BRC Coupler for sockets type TBF, CYC and CYA |
High strength alloy steel 42CrMo4 (EN ISO 683), B7 (ASTM A193) or 2H (ASTM A194) |
Hot dip galvanising with bright threads/Geomet |
• Ultrasonic Test (EN 10308) • Magnetoscopic Test (EN 10228-1) only on nuts • Visual Examination • Dimensional Control (EN 22768-2 for machining, ISO 965-1 for threads) |
|
Lock plates for TTF/TBF socket pin Washers for CYW, CYR, CYV |
S355J2 (EN 10025) |
Hot dip galvanising with minimum 85 μm thickness (EN 1461) |
|
|
Swaged Sockets type MAC, MAC-R, MCC, TBC and FLT |
42CrMo4 (EN ISO 683) or S355J2 (EN 10025) |
Hot dip galvanising (centrifuged) with minimum 55 μm thickness (EN 1461) |
• Ultrasonic Test (EN 10308) • Visual and Dimensional Inspection |
- BRC - Adjustable Sockets - High Performance Steel Cable System (1.48 MB)
- CYA - Adjustable Sockets - High Performance Steel Cable System (1.1 MB)
- CYB -- Adjustable Sockets - High Performance Steel Cable System (1.12 MB)
- CYM - Adjustable Sockets - High Performance Steel Cable System (1.25 MB)
- CYN - Adjustable Sockets - High Performance Steel Cable System (1.32 MB)
- CYR - Adjustable Sockets - High Performance Steel Cable System (1.27 MB)
- CYT - Adjustable Sockets - High Performance Steel Cable System (1.29 MB)
- TBF - Adjustable Sockets - High Performance Steel Cable System (1.43 MB)
- TBC S355J2 - Adjustable Sockets - High Performance Steel Cable System (0.94 MB)
- TBC - Adjustable Sockets - High Performance Steel Cable System (0.92 MB)
- MAC-R S355J2 - Adjustable Sockets - High Performance Steel Cable System (0.87 MB)
- MAC-R - Adjustable Sockets - High Performance Steel Cable System (0.91 MB)
- CYV - Adjustable Sockets - High Performance Steel Cable System (1.31 MB)
- CYW - Adjustable Sockets - High Performance Steel Cable System (1.25 MB)
- FLT - Adjustable Sockets - High Performance Steel Cable System (0.82 MB)
- FLT S355J2 - Adjustable Sockets - High Performance Steel Cable System (0.85 MB)
- CYS - Adjustable Sockets - High Performance Steel Cable System (1.11 MB)
- BRC 2D (5.98 MB)
- BRC 3D (11.29 MB)
- CYA 2D (5.49 MB)
- CYA 3D (5.05 MB)
- CYB 2D (5.48 MB)
- CYB 3D (7.02 MB)
- CYM 2D (5.52 MB)
- CYM 3D (5.23 MB)
- CYN 2D (5.48 MB)
- CYN 3D (3.56 MB)
- CYR 2D (6.47 MB)
- CYR 3D (12.91 MB)
- CYT 2D (5.8 MB)
- CYT 3D (3.58 MB)
- CYV 2D (5.89 MB)
- CYV 3D (10.66 MB)
- CYW 2D (6.49 MB)
- CYW 3D (10.4 MB)
- FLT 42CrMo4 2D (2.5 MB)
- FLT 42CrMo4 3D (0.36 MB)
- FLT S355J2 2D (2.46 MB)
- FLT S355J2 3D (0.36 MB)
- MAC-R 42CrMo4 2D (2.65 MB)
- MAC-R 42CrMo4 3D (0.74 MB)
- MAC-R S355J2 2D (2.64 MB)
- MAC-R S355J2 3D (0.76 MB)
- TBC 42CrMo4 2D (3.23 MB)
- TBC 42CrMo4 3D (1.18 MB)
- TBC S355J2 2D (2.85 MB)
- TBC S355J2 3D (1.19 MB)
- TBF 2D (8.9 MB)
- TBF 3D (12.59 MB)
- CYS 2D
- CYS 3D
