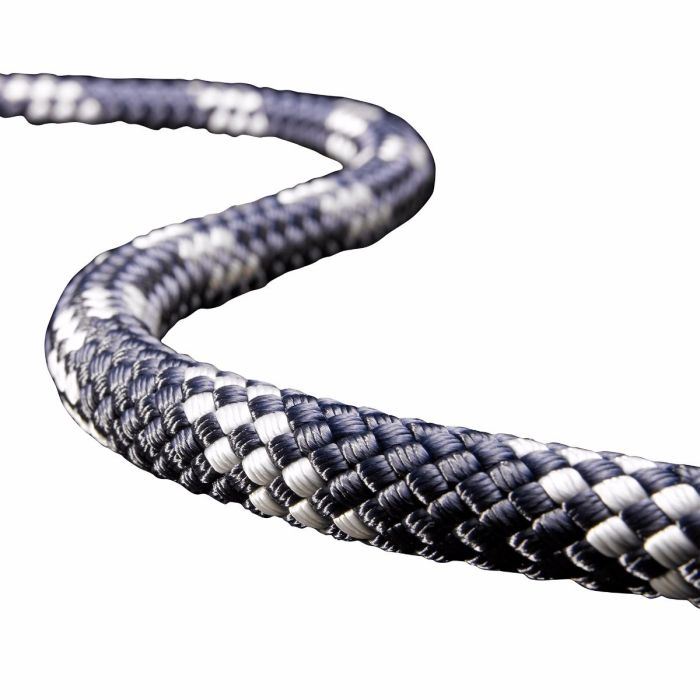

Globe 5000 MK2
Technical fiber rope
The technical fiber rope Globe 5000 MK2 excels with high friction values and breaking forces, very low stretch, as well as minimal core/cover displacement.
Specifications
Diameter: 6-16 mm
Cover: polyester
Intermediate cover: polyester
Core: UHMWPE
Colors: navy-silver, red-silver, green-silver, orange-silver
Certification possible for the lifting of loads acc. to the Machinery Directive 2006/42/EC as amended
The special rope construction consisting of a polyester cover, a soft intermediate cover of polyester, and a UHMWPE core largely prevents a core/cover displacement. Thus, Globe 5000 MK2 is the ideal solution for all applications where power transmission is effected via the rope cover (e.g. in spill winches).
The benefits of Globe 5000 MK2 are:
- High breaking force, minimal slip, perfect spooling behavior
- Low core/cover displacement due to a soft intermediate cover of polyester
- No corrosion, no soiling caused by rope grease
- No danger of injury, easy and quick handling
- Flexibility in terms of design
- Excellent UV stability
- Very high abrasion resistance, minimal stretch and highest radial stability
- Very good bending fatigue strength - resulting in a very long service life
| Diameter [mm] | Length [m] | Minimum breaking load [daN] | Weight [g/m] | |
|---|---|---|---|---|
| 6 | 200 | 1 200 | 22 | |
| 8 | 200 | 1 800 | 42 | |
| 10 | 200 | 3 500 | 62 | |
| 12 | 150 | 4 900 | 88 | |
| 14 | 100 | 6 700 | 118 | |
| 16 | 100 | 9 000 | 148 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
