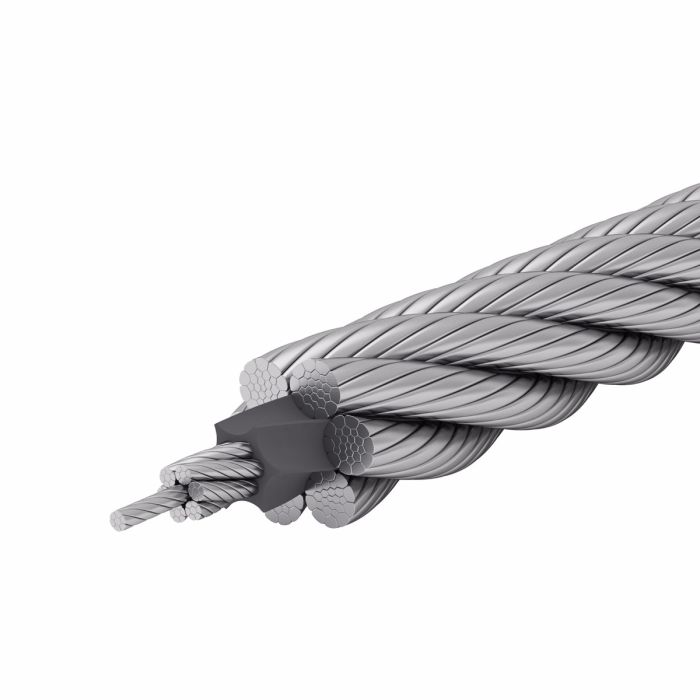

EXECUTION D6s
EXECUTION D6s is designed for enormous bending cycles in reeving arrangements in combination with high loads in the multilayer spooling. Perfect for offshore drilling rigs!
Specifications
Ordinary or Lang's lay, right or left-handed
30–50 mm: 6 x K26WS-EPIWRC, RCN 06
50–56 mm: 6 x K31WS-EPIWRC, RCN 08
Use without swivel
✔ Multilayer spooling
✔ PLASTFILL®
✔ SUPERFILL®
Ensuring the permanent availability of offshore drilling rigs and avoiding unscheduled downtimes are the basic prerequisites platform operators expect of high performance steel wire ropes. EXECUTION D6s has lived up to these expectations on drilling rigs of leading manufacturers for many years.
Benefits of EXECUTION D6s:
- Long service life thanks to particularly high resistance to shock loads
- Low rope wear and highest break loads due to SUPERFILL® compaction of core strands and outer strands
- High operational safety thanks to this rope construction's excellent performance under reverse bending cycles
- Excellent value for money in use due to minimal downtimes; the 6-strand rope construction combined with optimized slip-and-cut programs make this possible
- Low sensitivity to vibrations in use thanks to the PLASTFILL® insert that provides permanent lubrication of the core and corrosion protection for bright rope variants
| Product name | Diameter | Weight | Mindestbruchkräfte | |||||
|---|---|---|---|---|---|---|---|---|
| Festigkeitsklassen 1960 N/mm² | Festigkeitsklassen 2160 N/mm² | |||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbs] | [kN] | [lbs] | |
| EXECUTION D6s | 34.90 | 1 3/8" | 5.40 | 3.62 | 1 024 | 230 146 | 1 106 | 248 706 |
| EXECUTION D6s | 38.10 | 1 1/2" | 6.40 | 4.29 | 1 220 | 274 285 | 1 318 | 296 405 |
| EXECUTION D6s | 41.27 | 1 5/8" | 7.54 | 5.06 | 1 432 | 321 926 | 1 547 | 347 779 |
| EXECUTION D6s | 44.45 | 1 3/4" | 8.95 | 6.01 | 1 661 | 373 332 | 1 795 | 403 440 |
| EXECUTION D6s | 47.60 | 1 7/8" | 9.98 | 6.70 | 1 904 | 428 121 | 2 058 | 462 647 |
| EXECUTION D6s | 50.80 | 2" | 11.50 | 7.72 | 2 197 | 493 869 | 2 344 | 526 942 |
| EXECUTION D6s | 54 | 2 1/8" | 13 | 8.72 | 2 451 | 550 985 | 2 649 | 595 420 |
| EXECUTION D6s | 56 | 13.87 | 9.31 | 2 636 | 592 554 | 2 848 | 640 341 | |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
