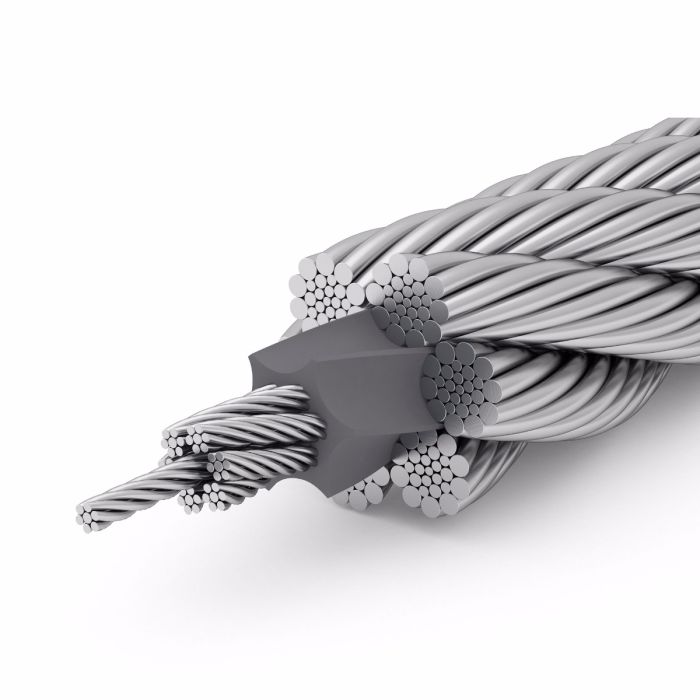

EXECUTION D6
This high performance steel wire rope was designed to cope with bending stresses in a permanently loaded state. It is synonymous with highest reliability.
Specifications
Ordinary or Lang's lay, right or left-handed
6 x 26WS EPIWRC, RCN 06
Use without swivel
✔ PLASTFILL®
Ensuring the permanent availability of offshore drilling rigs and avoiding unscheduled downtimes are what rig operators expect. The EXECUTION D6 high performance steel wire rope meets these expectations at drilling rigs where the breaking forces of non-compacted ropes are sufficient.
Benefits of EXECUTION D6:
- Robust and extremely resistant to the ingress of dirt thanks to PLASTFILL® insert around the core
- High operational safety thanks to this rope construction's excellent performance under reverse bending cycles
- Extremely cost-effective due to cost-optimized non-compacted rope construction
- Perfect spooling in reeving arrangements thanks to the flexibility of this rope construction
- Low sensitively to vibrations in use due to the PLASTFILL® insert that ensures the permanent lubrication of the core and provides corrosion protection for bright rope variants
| Product name | Diameter | Weight | Mindestbruchkräfte | |||||
|---|---|---|---|---|---|---|---|---|
| Festigkeitsklassen 1960 N/mm² | Festigkeitsklassen 2160 N/mm² | |||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbs] | [kN] | [lbs] | |
| EXECUTION D6 | 34.90 | 1 3/8" | 5 | 3.36 | 881 | 198 057 | 920 | 206 824 |
| EXECUTION D6 | 38.10 | 1 1/2" | 5,9, | 3.96 | 1 048 | 235 600 | 1 096 | 246 391 |
| EXECUTION D6 | 44.45 | 1 3/4" | 8.70 | 5.84 | 1 426 | 320 578 | 1 492 | 335 415 |
| EXECUTION D6 | 47.60 | 1 7/8" | 9.22 | 6.19 | 1 636 | 367 787 | 1 710 | 384 423 |
| EXECUTION D6 | 50.80 | 2" | 10.72 | 7.19 | 1 862 | 418 594 | 1 948 | 437 928 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
