EVOLUTION TK16
Extreme protection against external influences

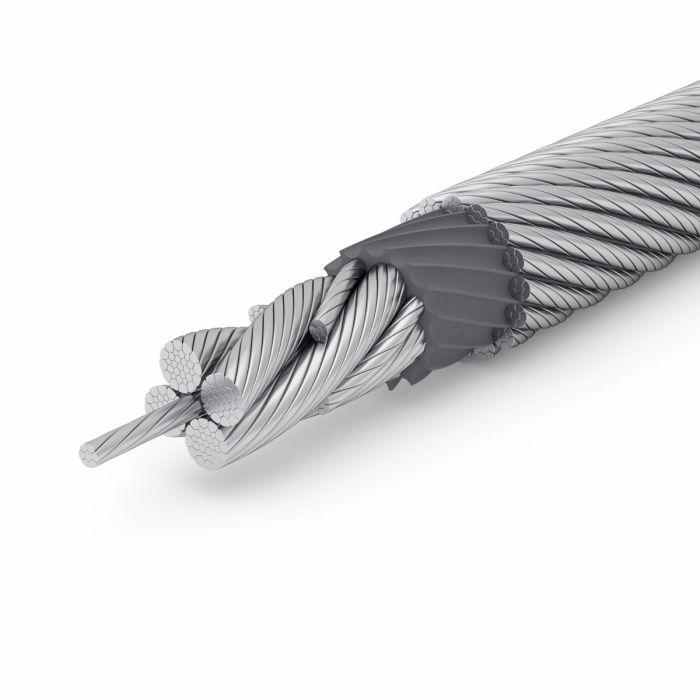

This high performance steel wire rope with its advanced design excels due to high flexibility and extreme durability.
Specifications
- Ordinary lay or lang lay, right or left lay
- 8-30 mm: 16xK6-EPIWRC(K), RCN 23-1
- 32-42 mm: 16xK7-EPIWRC(K), RCN 23-2
✔ Multilayer Spooling
✔ SUPERFILL®
✔ PLASTFILL®
For an optimum performance of the equipment, the diverse applications in the field of special deep foundation engineering such as drilling, trench cutting, grabbing, or pile driving demand a great performance of the hoist rope and are a tough challenge for the Teufelberger-Redaelli high performance steel wire ropes.
Benefits of EVOLUTION TK16:
- Extremely resistant to external environmental influences and the ingress of dirt due to PLASTFILL® insert resulting in a perfect lubrication of the inner rope
- Excellent spooling characteristics due to highest dimensional stability under lateral pressure - even in multilayer spooling operation
- Extremely high operational safety due to high breaking forces and resistance to torsion
- Long service life even in case of shock loads due to the 4-strand design of the inner rope
Diameter | Weight | Minimum breaking force | |||||||
---|---|---|---|---|---|---|---|---|---|
1770 N/mm² | 1960 N/mm² | 2160 N/mm² | |||||||
[mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] |
8 | 5/16 | 0.34 | 0.23 | 54 | 12 140 | 59 | 13 264 | 64 | 14 388 |
9 | 0.41 | 0.27 | 67 | 15 062 | 74 | 16 636 | 78 | 17 535 | |
10 | 0.50 | 0.33 | 82 | 18 434 | 91 | 20 458 | 98 | 22 031 | |
11 | 0.61 | 0.41 | 100 | 22 481 | 111 | 24 954 | 118 | 26 527 | |
12 | 0.74 | 0.50 | 120 | 26 977 | 133 | 29 900 | 144 | 32 372 | |
13 | 0.86 | 0.58 | 141 | 31 698 | 156 | 35 070 | 170 | 38 218 | |
14 | 9/16 | 1.01 | 0.68 | 163 | 36 644 | 181 | 40 690 | 197 | 44 287 |
15 | 1.16 | 0.78 | 194 | 43 613 | 215 | 48 334 | 231 | 51 931 | |
16 | 5/8 | 1.32 | 0.88 | 221 | 49 683 | 244 | 54 853 | 263 | 59 125 |
17 | 1.50 | 1.01 | 241 | 54 179 | 267 | 60 024 | 290 | 65 195 | |
18 | 1.64 | 1.10 | 279 | 62 722 | 309 | 69 466 | 333 | 74 861 | |
19 | 3/4 | 1.85 | 1.24 | 312 | 70 140 | 345 | 77 559 | 371 | 83 404 |
20 | 2.08 | 1.39 | 338 | 75 985 | 374 | 84 079 | 401 | 90 148 | |
21 | 2.26 | 1.52 | 373 | 83 854 | 413 | 92 846 | 444 | 99 815 | |
22 | 7/8 | 2.51 | 1.68 | 408 | 91 722 | 452 | 101 614 | 487 | 109 482 |
24 | 2.94 | 1.97 | 483 | 108 583 | 535 | 120 273 | 580 | 130 389 | |
25 | 1.00 | 3.15 | 2.11 | 537 | 120 722 | 595 | 133 761 | 639 | 143 653 |
26 | 3.49 | 2.34 | 567 | 127 467 | 627 | 140 955 | 675 | 151 746 | |
27 | 3.74 | 2.51 | 609 | 136 909 | 674 | 151 521 | 725 | 162 986 | |
28 | 4.05 | 2.71 | 655 | 147 250 | 725 | 162 986 | 780 | 175 351 | |
28.57 | 1 1/8 | 4.14 | 2.78 | 668 | 150 172 | 744 | 167 258 | 814 | 182 994 |
29 | 4.27 | 2.87 | 701 | 157 591 | 777 | 174 677 | 835 | 187 715 | |
30 | 4.62 | 3.10 | 749 | 168 382 | 830 | 186 591 | 893 | 200 754 | |
32 | 1 1/4 | 5.24 | 3.52 | 853 | 191 762 | 944 | 212 220 | 1 035 | 232 677 |
34 | 5.90 | 3.96 | 958 | 215 367 | 1 061 | 238 522 | 1 141 | 256 507 | |
36 | 6.65 | 4.46 | 1 072 | 240 995 | 1 187 | 266 848 | 1 277 | 287 081 | |
38 | 1 1/2 | 7.35 | 4.93 | 1 237 | 278 089 | 1 369 | 307 763 | 1 472 | 330 919 |
40 | 7.87 | 5.28 | 1 317 | 296 073 | 1 458 | 327 771 | 1 568 | 352 500 | |
42 | 8.97 | 6.02 | 1 452 | 326 423 | 1 608 | 361 493 | 1 729 | 388 695 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
