EVOLUTION QS816V
It’s phenomenal resistance to adverse external influences and superior versatility make this rope a compelling choice as boom hoist rope on offshore cranes.
Specifications
Ordinary or Lang's lay, right or left-handed
10–42 mm: 8 x K26WS – EPIWRC (K), RCN 0 9
44–50 mm: 8 x K31WS – EPIWRC (K), RCN 11
52–70 mm: 8 x K42WS – EPIWRC (K), RCN >13
Use without swivel
✔ Multilayer spooling
✔ PLASTFILL®
✔ SUPERFILL®
Operational safety and reliability are indispensable characteristics for ropes used in offshore applications, as they are permanently exposed to brutally harsh conditions. EVOLUTION QS816V is also extremely versatile, robust, and durable.

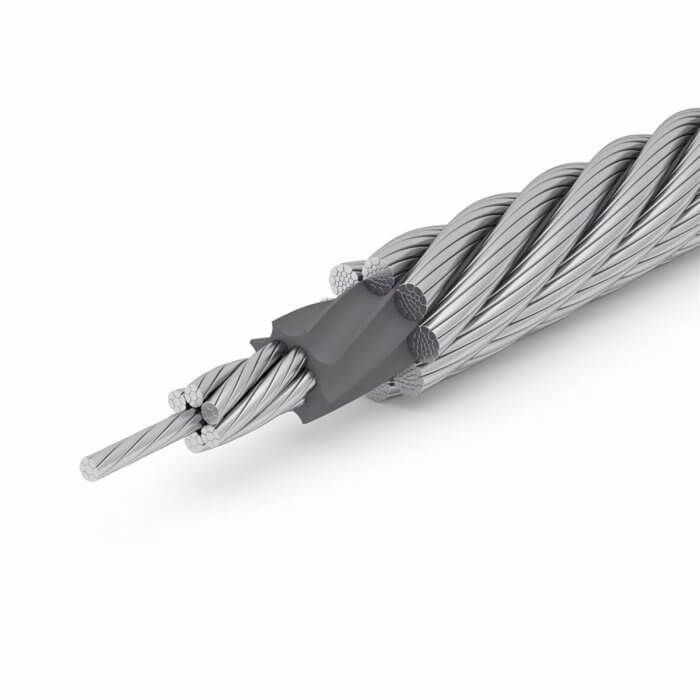

This is made possible by the special rope construction which includes a core-protecting PLASTFILL® insert.
Benefits of EVOLUTION QS816V:
- Reliability and safety in use thanks to the rope's excellent durability under very high actual and minimum breaking forces achieved by SUPERFILL®-compacting all strands
- Long lifetime due to the wear-optimized construction and the core-protecting PLASTFILL® insert
- Excellent spooling performance on multilayer spooling systems thanks to high dimensional stability under lateral pressure
- Low wear even in multilayer spooling use thanks to SUPERFILL® compaction of all strands
| Construction | Diameter | Weight | Minimum breaking force | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1770 N/mm² | 1960 N/mm² | 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | |
| 8xK26WS-EPIWRC(K) | 10 | 0.47 | 0.32 | 83 | 18 659 | 92 | 20 682 | 100 | 22 481 | |
| 8xK26WS-EPIWRC(K) | 11 | 7/16 | 0.57 | 0.38 | 101 | 22 706 | 112 | 25 179 | 121 | 27 202 |
| 8xK26WS-EPIWRC(K) | 12 | 0.69 | 0.46 | 120 | 26 977 | 133 | 29 900 | 144 | 32 372 | |
| 8xK26WS-EPIWRC(K) | 12.70 | 1/2 | 0.77 | 0.52 | 135 | 30 349 | 149 | 33 497 | 161 | 36 194 |
| 8xK26WS-EPIWRC(K) | 13 | 0.81 | 0.54 | 141 | 31 698 | 156 | 35 070 | 172 | 38 667 | |
| 8xK26WS-EPIWRC(K) | 14 | 9/16 | 0.93 | 0.62 | 163 | 36 644 | 181 | 40 690 | 198 | 44 512 |
| 8xK26WS-EPIWRC(K) | 15 | 1.08 | 0.72 | 188 | 42 264 | 208 | 46 760 | 226 | 50 807 | |
| 8xK26WS-EPIWRC(K) | 16 | 5/8 | 1.21 | 0.81 | 214 | 48 109 | 236 | 53 055 | 256 | 57 551 |
| 8xK26WS-EPIWRC(K) | 17 | 1.36 | 0.92 | 241 | 54 179 | 267 | 60 024 | 289 | 64 970 | |
| 8xK26WS-EPIWRC(K) | 18 | 1.54 | 1.03 | 270 | 60 698 | 299 | 67 218 | 324 | 72 838 | |
| 8xK26WS-EPIWRC(K) | 19 | 3/4 | 1.71 | 1.15 | 302 | 67 892 | 335 | 75 311 | 369 | 82 955 |
| 8xK26WS-EPIWRC(K) | 20 | 1.88 | 1.26 | 334 | 75 086 | 369 | 82 955 | 402 | 90 373 | |
| 8xK26WS-EPIWRC(K) | 21 | 2.11 | 1.41 | 374 | 84 079 | 414 | 93 071 | 449 | 100 939 | |
| 8xK26WS-EPIWRC(K) | 22 | 2.32 | 1.56 | 408 | 91 722 | 451 | 101 389 | 497 | 111 730 | |
| 8xK26WS-EPIWRC(K) | 22.23 | 7/8 | 2.34 | 1.57 | 412 | 92 621 | 456 | 102 513 | 503 | 113 079 |
| 8xK26WS-EPIWRC(K) | 23 | 2.52 | 1.70 | 445 | 100 040 | 492 | 110 606 | 543 | 122 071 | |
| 8xK26WS-EPIWRC(K) | 24 | 2.73 | 1.83 | 480 | 107 908 | 532 | 119 598 | 577 | 129 715 | |
| 8xK26WS-EPIWRC(K) | 25 | 2.96 | 1.99 | 521 | 117 125 | 577 | 129 715 | 633 | 142 304 | |
| 8xK26WS-EPIWRC(K) | 25.40 | 1.00 | 3.03 | 2.04 | 538 | 120 947 | 596 | 133 986 | 646 | 145 227 |
| 8xK26WS-EPIWRC(K) | 26 | 3.21 | 2.16 | 564 | 126 792 | 624 | 140 281 | 678 | 152 420 | |
| 8xK26WS-EPIWRC(K) | 27 | 3.45 | 2.32 | 608 | 136 684 | 673 | 151 296 | 730 | 164 111 | |
| 8xK26WS-EPIWRC(K) | 28 | 3.73 | 2.51 | 656 | 147 475 | 726 | 163 211 | 800 | 179 847 | |
| 8xK26WS-EPIWRC(K) | 28.58 | 1 1/8 | 3.88 | 2.61 | 681 | 153 095 | 754 | 169 506 | 820 | 184 343 |
| 8xK26WS-EPIWRC(K) | 29 | 3.99 | 2.68 | 701 | 157 591 | 777 | 174 677 | 847 | 190 413 | |
| 8xK26WS-EPIWRC(K) | 30 | 4.30 | 2.89 | 764 | 171 754 | 846 | 190 188 | 901 | 202 553 | |
| 8xK26WS-EPIWRC(K) | 31.75 | 1 1/4 | 4.83 | 3.24 | 841 | 189 064 | 931 | 209 297 | 1 009 | 226 832 |
| 8xK26WS-EPIWRC(K) | 32 | 4.86 | 3.27 | 864 | 194 235 | 957 | 215 142 | 1 042 | 234 251 | |
| 8xK26WS-EPIWRC(K) | 34 | 5.48 | 3.68 | 964 | 216 716 | 1 068 | 240 096 | 1 157 | 260 104 | |
| 8xK26WS-EPIWRC(K) | 35 | 5.80 | 3.90 | 1 022 | 229 755 | 1 131 | 254 259 | 1 226 | 275 616 | |
| 8xK26WS-EPIWRC(K) | 36 | 6.18 | 4.16 | 1 081 | 243 018 | 1 197 | 269 096 | 1 297 | 291 577 | |
| 8xK26WS-EPIWRC(K) | 38 | 6.89 | 4.63 | 1 222 | 274 717 | 1 354 | 304 391 | 1 445 | 324 849 | |
| 8xK26WS-EPIWRC(K) | 40 | 7.67 | 5.16 | 1 342 | 301 694 | 1 486 | 334 066 | 1 601 | 359 919 | |
| 8xK26WS-EPIWRC(K) | 41 | 8.00 | 5.38 | 1 402 | 315 182 | 1 553 | 349 128 | 1 711 | 384 648 | |
| 8xK26WS-EPIWRC(K) | 42 | 8.46 | 5.69 | 1 482 | 333 167 | 1 641 | 368 911 | 1 766 | 397 013 | |
| 8xK31WS-EPIWRC(K) | 44 | 9.10 | 6.11 | 1 615 | 363 066 | 1 788 | 401 958 | 1 938 | 435 680 | |
| 8xK31WS-EPIWRC(K) | 44.45 | 1 3/4 | 9.31 | 6.26 | 1 648 | 370 485 | 1 825 | 410 276 | 1 978 | 444 672 |
| 8xK31WS-EPIWRC(K) | 46 | 9.997 | 6.72 | 1 765 | 396 788 | 1 954 | 439 277 | 2 118 | 476 145 | |
| 8xK31WS-EPIWRC(K) | 48 | 10.81 | 7.26 | 1 922 | 432 083 | 2 128 | 478 393 | 2 306 | 518 409 | |
| 8xK31WS-EPIWRC(K) | 50 | 11.71 | 7.87 | 2 085 | 468 727 | 2 309 | 519 084 | 2 502 | 562 472 | |
| 8xK42WS-EPIWRC(K) | 50.80 | 2 | 12.05 | 8.09 | 2 117 | 475 921 | 2 344 | 526 952 | 2 539 | 570 790 |
| 8xK42WS-EPIWRC(K) | 52 | 12.61 | 8.47 | 2 218 | 498 626 | 2 456 | 552 131 | 2 661 | 598 217 | |
| 8xK42WS-EPIWRC(K) | 54 | 2 1/8 | 13.55 | 9.10 | 2 392 | 537 743 | 2 648 | 595 294 | 2 869 | 644 977 |
| 8xK42WS-EPIWRC(K) | 56 | 14.59 | 9.81 | 2 572 | 578 209 | 2 848 | 640 256 | 3 086 | 693 760 | |
| 8xK42WS-EPIWRC(K) | 57.15 | 2 1/4 | 15.16 | 10.19 | 2 679 | 602 263 | 2 966 | 666 783 | 3 214 | 722 536 |
| 8xK42WS-EPIWRC(K) | 58 | 15.61 | 10.49 | 2 759 | 620 248 | 3 055 | 686 791 | 3 310 | 744 118 | |
| 8xK42WS-EPIWRC(K) | 60 | 16.75 | 11.26 | 2 953 | 663 861 | 3 270 | 735 125 | 3 542 | 796 273 | |
| 8xK42WS-EPIWRC(K) | 60.33 | 2 3/8 | 16.89 | 11.35 | 2 985 | 671 055 | 3 305 | 742 994 | 3 581 | 805 041 |
| 8xK42WS-EPIWRC(K) | 64 | 19.00 | 12.77 | 3 360 | 755 358 | 3 720 | 836 289 | 3 961 | 890 468 | |
| 8xK42WS-EPIWRC(K) | 66 | 20.23 | 13.60 | 3 573 | 803 242 | 3 956 | 889 344 | 4 212 | 946 895 | |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
