EVOLUTION QS816V
Ultimate breaking forces

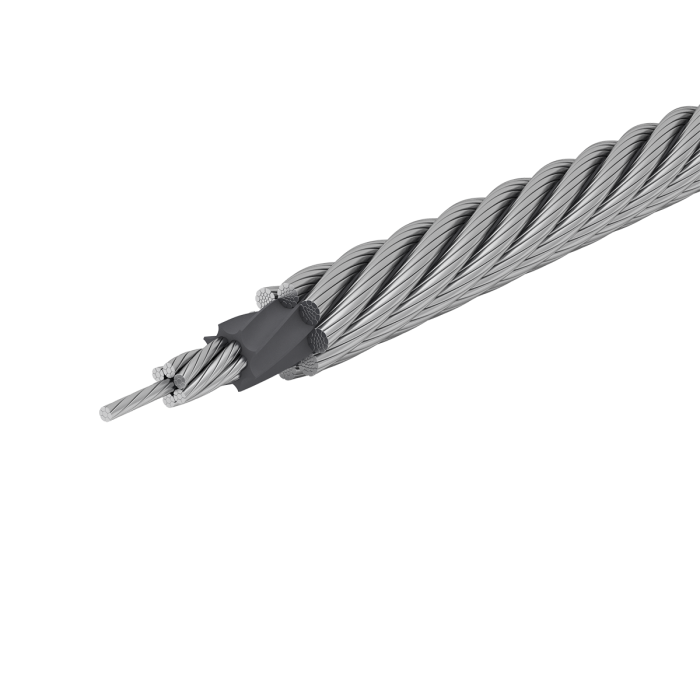

With its extreme resistance to negative external influences and outstanding all-round characteristics, the non rotation-resistant rope excels in building construction and civil engineering.
Specifications
— Ordinary lay or lang lay, right or left lay
— 8xK26WS-EPIWRC(K), RCN 09
— Use without swivel
— Special construction of inner core
✔ Multilayer Spooling
✔ SUPERFILL®
✔ PLASTFILL®
Since steel wire ropes are used under extreme conditions both in building construction and in civil engineering, operational safety and reliability play an important role. EVOLUTION QS816V from Teufelberger-Redaelli combines reliability and operational safety due to its excellent all-round characteristics, on the one hand, with robustness and durability due to the rope design with the PLASTFILL® insert, on the other hand.
Benefits of EVOLUTION QS816V:
- Reliability and operational safety due to the high durability of the rope at very high minimum breaking forces
- Long service life due to the wear-optimized design and the PLASTFILL® insert protecting the core
- Excellent spooling characteristics in multilayer spooling due to high dimensional stability under lateral pressure
- Low wear achieved by SUPERFILL® compaction of all strands allows a perfect use in scraper installations
| Construction | Diameter | Weight | Minimum breaking force | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1770 N/mm² | 1960 N/mm² | 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | |
| 8xK26WS-EPIWRC(K) | 10 | 0.47 | 0.32 | 83 | 18 659 | 92 | 20 682 | 100 | 22 481 | |
| 8xK26WS-EPIWRC(K) | 11 | 7/16 | 0.57 | 0.38 | 101 | 22 706 | 112 | 25 179 | 121 | 27 202 |
| 8xK26WS-EPIWRC(K) | 12 | 0.69 | 0.46 | 120 | 26 977 | 133 | 29 900 | 144 | 32 372 | |
| 8xK26WS-EPIWRC(K) | 12.70 | 1/2 | 0.77 | 0.52 | 135 | 30 349 | 149 | 33 497 | 161 | 36 194 |
| 8xK26WS-EPIWRC(K) | 13 | 0.81 | 0.54 | 141 | 31 698 | 156 | 35 070 | 172 | 38 667 | |
| 8xK26WS-EPIWRC(K) | 14 | 9/16 | 0.93 | 0.62 | 163 | 36 644 | 181 | 40 690 | 198 | 44 512 |
| 8xK26WS-EPIWRC(K) | 15 | 1.08 | 0.72 | 188 | 42 264 | 208 | 46 760 | 226 | 50 807 | |
| 8xK26WS-EPIWRC(K) | 16 | 5/8 | 1.21 | 0.81 | 214 | 48 109 | 236 | 53 055 | 256 | 57 551 |
| 8xK26WS-EPIWRC(K) | 17 | 1.36 | 0.92 | 241 | 54 179 | 267 | 60 024 | 289 | 64 970 | |
| 8xK26WS-EPIWRC(K) | 18 | 1.54 | 1.03 | 270 | 60 698 | 299 | 67 218 | 324 | 72 838 | |
| 8xK26WS-EPIWRC(K) | 19 | 3/4 | 1.71 | 1.15 | 302 | 67 892 | 335 | 75 311 | 369 | 82 955 |
| 8xK26WS-EPIWRC(K) | 20 | 1.88 | 1.26 | 334 | 75 086 | 369 | 82 955 | 402 | 90 373 | |
| 8xK26WS-EPIWRC(K) | 21 | 2.11 | 1.41 | 374 | 84 079 | 414 | 93 071 | 449 | 100 939 | |
| 8xK26WS-EPIWRC(K) | 22 | 2.32 | 1.56 | 408 | 91 722 | 451 | 101 389 | 497 | 111 730 | |
| 8xK26WS-EPIWRC(K) | 22.23 | 7/8 | 2.34 | 1.57 | 412 | 92 621 | 456 | 102 513 | 503 | 113 079 |
| 8xK26WS-EPIWRC(K) | 23 | 2.52 | 1.70 | 445 | 100 040 | 492 | 110 606 | 543 | 122 071 | |
| 8xK26WS-EPIWRC(K) | 24 | 2.73 | 1.83 | 480 | 107 908 | 532 | 119 598 | 577 | 129 715 | |
| 8xK26WS-EPIWRC(K) | 25 | 2.96 | 1.99 | 521 | 117 125 | 577 | 129 715 | 633 | 142 304 | |
| 8xK26WS-EPIWRC(K) | 25.40 | 1.00 | 3.03 | 2.04 | 538 | 120 947 | 596 | 133 986 | 646 | 145 227 |
| 8xK26WS-EPIWRC(K) | 26 | 3.21 | 2.16 | 564 | 126 792 | 624 | 140 281 | 678 | 152 420 | |
| 8xK26WS-EPIWRC(K) | 27 | 3.45 | 2.32 | 608 | 136 684 | 673 | 151 296 | 730 | 164 111 | |
| 8xK26WS-EPIWRC(K) | 28 | 3.73 | 2.51 | 656 | 147 475 | 726 | 163 211 | 800 | 179 847 | |
| 8xK26WS-EPIWRC(K) | 28.58 | 1 1/8 | 3.88 | 2.61 | 681 | 153 095 | 754 | 169 506 | 820 | 184 343 |
| 8xK26WS-EPIWRC(K) | 29 | 3.99 | 2.68 | 701 | 157 591 | 777 | 174 677 | 847 | 190 413 | |
| 8xK26WS-EPIWRC(K) | 30 | 4.30 | 2.89 | 764 | 171 754 | 846 | 190 188 | 901 | 202 553 | |
| 8xK26WS-EPIWRC(K) | 31.75 | 1 1/4 | 4.83 | 3.24 | 841 | 189 064 | 931 | 209 297 | 1 009 | 226 832 |
| 8xK26WS-EPIWRC(K) | 32 | 4.86 | 3.27 | 864 | 194 235 | 957 | 215 142 | 1 042 | 234 251 | |
| 8xK26WS-EPIWRC(K) | 34 | 5.48 | 3.68 | 964 | 216 716 | 1 068 | 240 096 | 1 157 | 260 104 | |
| 8xK26WS-EPIWRC(K) | 35 | 5.80 | 3.90 | 1 022 | 229 755 | 1 131 | 254 259 | 1 226 | 275 616 | |
| 8xK26WS-EPIWRC(K) | 36 | 6.18 | 4.16 | 1 081 | 243 018 | 1 197 | 269 096 | 1 297 | 291 577 | |
| 8xK26WS-EPIWRC(K) | 38 | 6.89 | 4.63 | 1 222 | 274 717 | 1 354 | 304 391 | 1 445 | 324 849 | |
| 8xK26WS-EPIWRC(K) | 40 | 7.67 | 5.16 | 1 342 | 301 694 | 1 486 | 334 066 | 1 601 | 359 919 | |
| 8xK26WS-EPIWRC(K) | 41 | 8.00 | 5.38 | 1 402 | 315 182 | 1 553 | 349 128 | 1 711 | 384 648 | |
| 8xK26WS-EPIWRC(K) | 42 | 8.46 | 5.69 | 1 482 | 333 167 | 1 641 | 368 911 | 1 766 | 397 013 | |
| 8xK31WS-EPIWRC(K) | 44 | 9.10 | 6.11 | 1 615 | 363 066 | 1 788 | 401 958 | 1 938 | 435 680 | |
| 8xK31WS-EPIWRC(K) | 44.45 | 1 3/4 | 9.31 | 6.26 | 1 648 | 370 485 | 1 825 | 410 276 | 1 978 | 444 672 |
| 8xK31WS-EPIWRC(K) | 46 | 9.997 | 6.72 | 1 765 | 396 788 | 1 954 | 439 277 | 2 118 | 476 145 | |
| 8xK31WS-EPIWRC(K) | 48 | 10.81 | 7.26 | 1 922 | 432 083 | 2 128 | 478 393 | 2 306 | 518 409 | |
| 8xK31WS-EPIWRC(K) | 50 | 11.71 | 7.87 | 2 085 | 468 727 | 2 309 | 519 084 | 2 502 | 562 472 | |
| 8xK42WS-EPIWRC(K) | 50.80 | 2 | 12.05 | 8.09 | 2 117 | 475 921 | 2 344 | 526 952 | 2 539 | 570 790 |
| 8xK42WS-EPIWRC(K) | 52 | 12.61 | 8.47 | 2 218 | 498 626 | 2 456 | 552 131 | 2 661 | 598 217 | |
| 8xK42WS-EPIWRC(K) | 54 | 2 1/8 | 13.55 | 9.10 | 2 392 | 537 743 | 2 648 | 595 294 | 2 869 | 644 977 |
| 8xK42WS-EPIWRC(K) | 56 | 14.59 | 9.81 | 2 572 | 578 209 | 2 848 | 640 256 | 3 086 | 693 760 | |
| 8xK42WS-EPIWRC(K) | 57.15 | 2 1/4 | 15.16 | 10.19 | 2 679 | 602 263 | 2 966 | 666 783 | 3 214 | 722 536 |
| 8xK42WS-EPIWRC(K) | 58 | 15.61 | 10.49 | 2 759 | 620 248 | 3 055 | 686 791 | 3 310 | 744 118 | |
| 8xK42WS-EPIWRC(K) | 60 | 16.75 | 11.26 | 2 953 | 663 861 | 3 270 | 735 125 | 3 542 | 796 273 | |
| 8xK42WS-EPIWRC(K) | 60.33 | 2 3/8 | 16.89 | 11.35 | 2 985 | 671 055 | 3 305 | 742 994 | 3 581 | 805 041 |
| 8xK42WS-EPIWRC(K) | 64 | 19.00 | 12.77 | 3 360 | 755 358 | 3 720 | 836 289 | 3 961 | 890 468 | |
| 8xK42WS-EPIWRC(K) | 66 | 20.23 | 13.60 | 3 573 | 803 242 | 3 956 | 889 344 | 4 212 | 946 895 | |
