EVOLUTION QS816V
With its extreme resistance to negative external influences and outstanding all-round characteristics, the rope excels in building construction and civil engineering.
Specifications
Ordinary lay and Lang’s lay, right and left lay
8 x K26WS EPIWRC (K), RCN 09
Use without swivel
✔ Multilayer spooling
✔ SUPERFILL®
✔ PLASTFILL®

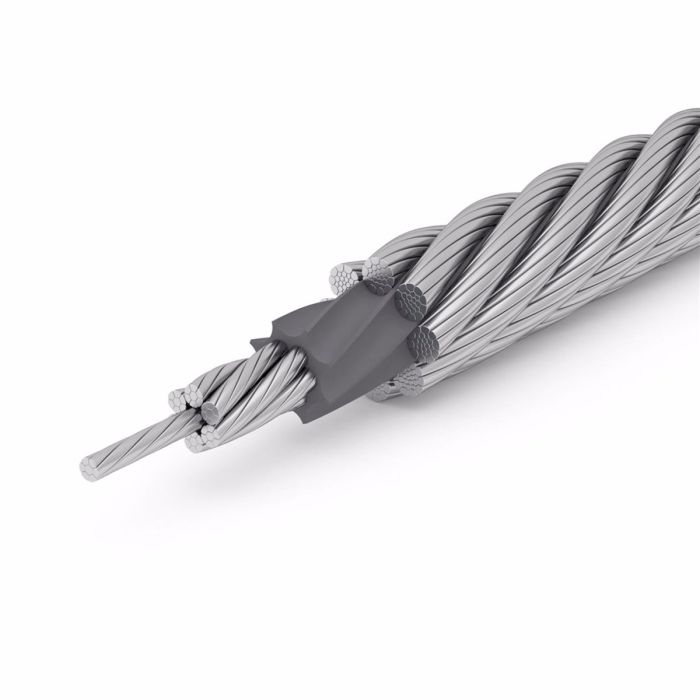

Since steel wire ropes are used under extreme conditions both in building construction and in civil engineering, operational safety and reliability play an important role. EVOLUTION QS816V from TEUFELBERGER combines reliability and operational safety due to its excellent all-round characteristics, on the one hand, with robustness and durability due to the rope design with the PLASTFILL® insert, on the other hand.
Benefits of EVOLUTION QS816V:
- Reliability and operational safety due to the high durability of the rope at very high minimum breaking forces
- Long service life due to the wear-optimized design and the PLASTFILL® insert protecting the core
- Excellent spooling characteristics in multilayer spooling due to high dimensional stability under lateral pressure
- Low wear achieved by SUPERFILL® compaction of all strands allows a perfect use in scraper installations
| Construction | Diameter | Weight | Mindestbruchkräfte | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Festigkeitsklassen 1770 N/mm² | Festigkeitsklassen 1960 N/mm² | Festigkeitsklassen 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | |
| QS 816 V(G) | 10 | 0.46 | 0.31 | 81 | 18 210 | 89 | 20 008 | 98 | 22 031 | |
| QS 816 V(G) | 11 | 7/16 | 0.55 | 0.37 | 97 | 21 806 | 107 | 24 055 | 118 | 26 527 |
| QS 816 V(G) | 12 | 0.69 | 0.46 | 117 | 26 303 | 129 | 29 000 | 143 | 32 148 | |
| QS 816 V(G) | 13 | 0.81 | 0.54 | 141 | 31 698 | 156 | 35 070 | 172 | 38 667 | |
| QS 816 V(G) | 14 | 9/16 | 0.93 | 0.62 | 162 | 36 419 | 179 | 40 241 | 198 | 44 512 |
| QS 816 V(G) | 15 | 1.06 | 0.71 | 185 | 41 590 | 205 | 46 086 | 226 | 50 807 | |
| QS 816 V(G) | 16 | 5/8 | 1.20 | 0.81 | 210 | 47 210 | 232 | 52 156 | 256 | 57 551 |
| QS 816 V(G) | 17 | 1.35 | 0.91 | 235 | 52 830 | 261 | 58 675 | 287 | 64 520 | |
| QS 816 V(G) | 18 | 1.55 | 1.04 | 263 | 59 125 | 291 | 65 419 | 321 | 72 164 | |
| QS 816 V(G) | 19 | 3/4 | 1.71 | 1.15 | 302 | 67 892 | 335 | 75 311 | 369 | 82 954 |
| QS 816 V(G) | 20 | 1.89 | 1.27 | 330 | 74 187 | 365 | 82 055 | 402 | 90 373 | |
| QS 816 V(G) | 21 | 2.15 | 1.44 | 374 | 84 079 | 414 | 93 071 | 457 | 102 738 | |
| QS 816 V(G) | 22 | 7/8 | 2.34 | 1.57 | 408 | 91 722 | 451 | 101 389 | 497 | 111 730 |
| QS 816 V(G) | 23 | 2.54 | 1.70 | 445 | 100 040 | 492 | 110 606 | 543 | 122 071 | |
| QS 816 V(G) | 24 | 2.75 | 1.85 | 467 | 104 986 | 517 | 116 226 | 570 | 128 141 | |
| QS 816 V(G) | 25 | 1.00 | 2.97 | 1.99 | 518 | 116 451 | 574 | 129 040 | 633 | 142 304 |
| QS 816 V(G) | 26 | 3.19 | 2.14 | 555 | 124 769 | 615 | 138 257 | 678 | 152 420 | |
| QS 816 V(G) | 27 | 3.51 | 2.36 | 595 | 133 761 | 659 | 148 149 | 727 | 163 436 | |
| QS 816 V(G) | 28 | 3.76 | 2.52 | 656 | 147 475 | 726 | 163 211 | 800 | 179 847 | |
| QS 816 V(G) | 28.57 | 1 1/8 | 3.98 | 2.67 | 672 | 151 072 | 745 | 167 483 | 820 | 184 343 |
| QS 816 V(G) | 29 | 4.04 | 2.71 | 694 | 156 017 | 768 | 172 653 | 847 | 190 413 | |
| QS 816 V(G) | 30 | 4.37 | 2.93 | 764 | 171 754 | 846 | 190 188 | 897 | 201 654 | |
| QS 816 V(G) | 32 | 1 1/4 | 4.90 | 3.29 | 864 | 194 235 | 957 | 215 142 | 1 072 | 240 995 |
| QS 816 V(G) | 34 | 5.59 | 3.75 | 945 | 212 444 | 1 046 | 235 150 | 1 153 | 259 205 | |
| QS 816 V(G) | 36 | 6.36 | 4.27 | 1 071 | 240 770 | 1 186 | 266 623 | 1 284 | 288 655 | |
| QS 816 V(G) | 38 | 1 1/2 | 7.03 | 4.72 | 1 222 | 274 717 | 1 354 | 304 391 | 1 431 | 321 702 |
| QS 816 V(G) | 40 | 7.81 | 5.24 | 1 342 | 301 694 | 1 486 | 334 066 | 1 545 | 347 330 | |
| QS 816 V(G) | 42 | 8.60 | 5.77 | 1 482 | 333 167 | 1 641 | 368 911 | 1 736 | 390 268 | |
