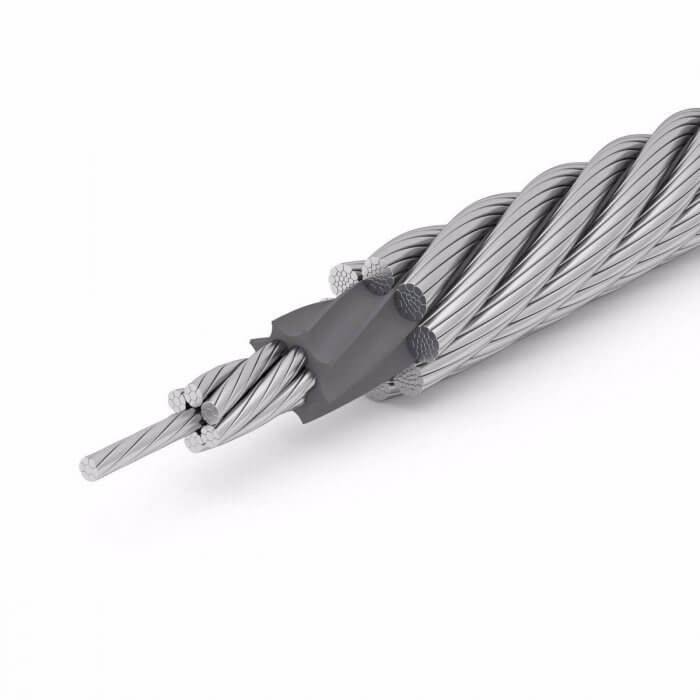

EVOLUTION QS816 V
The EVOLUTION QS816 V steel wire rope is our guyline for tower yarders.
Specifications
Diameter: 16-20 mm
Construction: 8 x K26WS-EPIWRC (K), RCN 9
Rope grade: 1960
Compaction: Strand compaction (SUPERFILL®)
Overmolded core insert (PLASTFILL®)
Surface: Blank
Standard: EN 12385-4
TEUFELBERGER's EVOLUTION QS816 V is an excellent choice of a guyline for tower yarders. Its main advantages are extremely high breaking forces and low elongation. Our EVOLUTION QS816 V features strand compaction (SUPERFILL®) and includes PLASTFILL® inserts.
Types and areas of use:
- Guyline for tower yarders
| Diameter [mm] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Weight [kg/m] | Aluminum ferrule size | Standard codes | |
|---|---|---|---|---|---|
| 8.50 | 67 | 0.34 | 10 | S |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
