Endura Braid
Winch rope for tree care

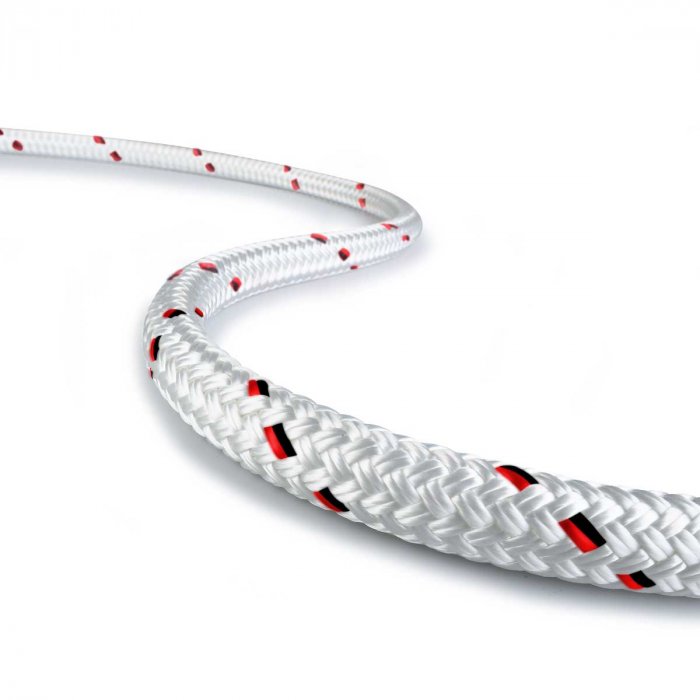

Endura Braid is a double braid winch rope for tree care excelling with very high strength.
Specifications
Standard: no standard
Core: HMPE
Cover: polyester
Plait number: 24
Made in
Color Images
White
All Diameters
-
White
All Diameters
Our Endura Braid is ideally suited for winch applications. It consists of a HMPE polyester double braid featuring very high strength. The HMPE core protected by a durable polyester cover ensures extremely low stretch.
Due to the higher strength-to-diameter ratio of Endura Braid smaller diameter ropes can be used. This can be an advantage when the winch drum takeup length is a limiting factor.
Moreover, an optional urethane coating can be applied to the entire assembly or to the eyes only.
| Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] |
|---|---|---|---|---|---|
| 10 | 3/8 | 56.50 | 3.80 | 3 955 | 8 900 |
| 11 | 7/16 | 80.3 | 5.40 | 5 735 | 12 900 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
